Part 3: PostfixAdmin – Create Virtual Mailboxes on CentOS/RHEL Mail Server

In previous articles, we discussed how to set up your own mail server on CentOS/RHEL from scratch. In part 1 and part 2 of this tutorial series, we learned how to set up Postfix SMTP server and Dovecot IMAP server, but so far we can only have email addresses for users with local Unix account. This tutorial is going to show you how to create virtual mailboxes on CentOS/RHEL mail server with PostfixAdmin, which is an open-source web-based interface to configure and manage a Postfix based email server for many domains and users.

With virtual mailboxes, we don’t need to create local Unix account for each email address. If you are going to set up a mail server for a company or organization, it’s always better to have an easy way to create virtual mailboxes in a web-based interface, which also allows users to change their passwords. That’s where PostfixAdmin comes in.

PostfixAdmin Features

  • manage mailboxes, virtual domains and aliases
  • vacation/out-of-office messages
  • alias domains (forwarding one domain to another with recipient validation)
  • users can manage their own mailbox (change alias, password and vacation message)
  • quota support for single mailboxes and total quota of a domain
  • display used quota
  • fetchmail integration: You can fetch emails from your original email address to your new email address.
  • command line client postfixadmin-cli for those who don’t want to click around in a web interface 😉

Note: Once you finish part 3, you can no longer use local Unix accounts as email addresses. You must create email addresses from the PostfixAdmin web interface.

Prerequisites

I assume that you have followed part 1 and part 2 of this tutorial series. If you followed mail server tutorials on other websites, I recommend purging your configurations and start over with my tutorial series, so you are not going to be confused by different setup processes.

PostfixAdmin is written in PHP and requires a database (MySQL/MariaDB, PostgreSQL or SQLite). This article will use MariaDB database. You also need to run Apache or Nginx web server. So basically we are going to need a LAMP or LEMP stack.

If you prefer to use Apache web server, then set up a LAMP stack.

If you prefer to use Nginx web server, then set up a LEMP stack.

Once the above requirements are met, let’s install and configure PostfixAdmin.

Step 1: Download PostfixAdmin on CentOS/RHEL Server

Log into your mail server, then download PostfixAdmin install file onto your server. Go to PostfixAdmin Gitbub page to download the latest version. You can use the wget tool to download it from command line. The download link is always available in the format below. If a new version comes out, simply replace 3.2.3 with the new version number.

sudo dnf install wget

wget https://github.com/postfixadmin/postfixadmin/archive/postfixadmin-3.2.3.tar.gz

Once downloaded, extract the archive.

If you are using Apache, then extract it to /var/www/ directory and rename it to postfixadmin.

sudo tar xvf postfixadmin-3.2.3.tar.gz -C /var/www/
sudo mv /var/www/postfixadmin-postfixadmin-3.2.3 /var/www/postfixadmin

If you are using Nginx, extract it to /usr/share/nginx/ directory and rename it to postfixadmin.

sudo tar xvf postfixadmin-3.2.3.tar.gz -C /usr/share/nginx/
sudo mv /usr/share/nginx/postfixadmin-postfixadmin-3.2.3 /usr/share/nginx/postfixadmin

Step 2: Create a Database and User for PostfixAdmin

Log into MySQL/MariaDB shell as root with the following command. You will need to enter the MySQL/MariaDB root password.

mysql -u root -p

Once you are logged in, create a database for PostfixAdmin using the following command. I named it postfixadmin, but you can use whatever name you like. (Don’t leave out the semicolon.)

create database postfixadmin;

Then enter the command below to create a database user for PostfixAdmin. This command also grant all privileges of postfixadmin database to the user. Replace postfixadmin_password with your preferred password. Note that the password should not contain the # character, or you might not be able to log in later.

grant all privileges on postfixadmin.* to postfixadmin@localhost identified by 'postfixadmin_password';

Flush the privileges table for the changes to take effect and then get out of MariaDB shell.

flush privileges;

exit;

Step 3: Configure PostfixAdmin

The default PostfixAdmin configuration file is config.inc.php. We need to create a config.local.php file and add custom configurations.

sudo nano /var/www/postfixadmin/config.local.php

or

sudo nano /usr/share/nginx/postfixadmin/config.local.php

Add the following lines in the file, so PostfixAdmin can connect to MySQL/MariaDB database. Replace postfixadmin_password with the real PostfixAdmin password created in step 2.

<?php
$CONF['configured'] = true;
$CONF['database_type'] = 'mysqli';
$CONF['database_host'] = 'localhost';
$CONF['database_port'] = '3306';
$CONF['database_user'] = 'postfixadmin';
$CONF['database_password'] = 'postfixadmin_password';
$CONF['database_name'] = 'postfixadmin';

Save and close the file.

Step 4: Create Apache Virtual Host or Nginx Config File for PostfixAdmin

Apache

If you use Apache web server, create a virtual host for PostfixAdmin.

sudo nano /etc/httpd/conf.d/postfixadmin.conf

Put the following text into the file. Replace postfixadmin.example.com with your real domain name and don’t forget to set DNS A record for it.

<VirtualHost *:80>
  ServerName postfixadmin.example.com
  DocumentRoot /var/www/postfixadmin/public/

  ErrorLog /var/log/httpd/postfixadmin_error.log
  CustomLog /var/log/httpd/postfixadmin_access.log combined

  <Directory />
    Options FollowSymLinks
    AllowOverride All
  </Directory>

  <Directory /var/www/postfixadmin/public/>
    Options FollowSymLinks MultiViews
    AllowOverride All
    Order allow,deny
    allow from all
  </Directory>

</VirtualHost>

Save and close the file. Reload Apache for the changes to take effect.

sudo systemctl reload httpd

Now you should be able to see the PostfixAdmin web-based install wizard at http://postfixadmin.example.com/setup.php.

Nginx

If you use Nginx web server, create a virtual host for PostfixAdmin.

sudo nano /etc/nginx/conf.d/postfixadmin.conf

Put the following text into the file. Replace postfixadmin.example.com with your real domain name and don’t forget to set DNS A record for it.

server {
   listen 80;
   server_name postfixadmin.example.com;

   root /usr/share/nginx/postfixadmin/public/;
   index index.php index.html;

   access_log /var/log/nginx/postfixadmin_access.log;
   error_log /var/log/nginx/postfixadmin_error.log;

   location / {
       try_files $uri $uri/ /index.php;
   }

   location ~ ^/(.+\.php)$ {
        try_files $uri =404;
        fastcgi_pass unix:/run/php-fpm/www.sock;
        fastcgi_index index.php;
        fastcgi_param SCRIPT_FILENAME $document_root$fastcgi_script_name;
        include /etc/nginx/fastcgi_params;
   }
}

Save and close the file. Then test Nginx configuration.

sudo nginx -t

If the test is successful, reload Nginx for the changes to take effect.

sudo systemctl reload nginx

Now you should be able to see the PostfixAdmin web-based install wizard at http://postfixadmin.example.com/setup.php.

Step 5: Install Required and Recommended PHP Modules

PostfixAdmin requires the php-imap module to create subfolders in mailboxes, but php-imap isn’t included in the default CentOS 8/RHEL 8 repository, so we need to use the Remi repo to install this PHP module.

Install the Remi Repo.

sudo dnf install -y https://rpms.remirepo.net/enterprise/remi-release-8.rpm

Then reset PHP module streams.

sudo dnf module reset php

Enable the php:remi-7.4 module stream.

sudo dnf module enable php:remi-7.4 -y

Then you can run the following command to install PHP modules required or recommended by PostfixAdmin.

sudo dnf install php-imap php-mbstring php-mysqlnd php-json php-curl php-zip php-xml php-bz2 php-intl php-gmp

Restart Apache or Nginx.

sudo systemctl restart httpd

sudo systemctl restart nginx

Step 6: Enabling HTTPS

To encrypt the HTTP traffic, we can enable HTTPS by installing a free TLS certificate issued from Let’s Encrypt.

If you use Apache, run this command to obtain and install TLS certificate.

sudo /usr/local/bin/certbot --apache --agree-tos --redirect --hsts --staple-ocsp --email [email protected] -d postfixadmin.example.com

If you use Nginx,  run the following command to obtain and install TLS certificate.

sudo /usr/local/bin/certbot --nginx --agree-tos --redirect --hsts --staple-ocsp --email [email protected] -d postfixadmin.example.com

Where

  • --nginx: Use the nginx plugin.
  • --apache: Use the Apache plugin.
  • --agree-tos: Agree to terms of service.
  • --redirect: Force HTTPS by 301 redirect.
  • --hsts: Add the Strict-Transport-Security header to every HTTP response. Forcing browser to always use TLS for the domain. Defends against SSL/TLS Stripping.
  • --staple-ocsp: Enables OCSP Stapling. A valid OCSP response is stapled to the certificate that the server offers during TLS.

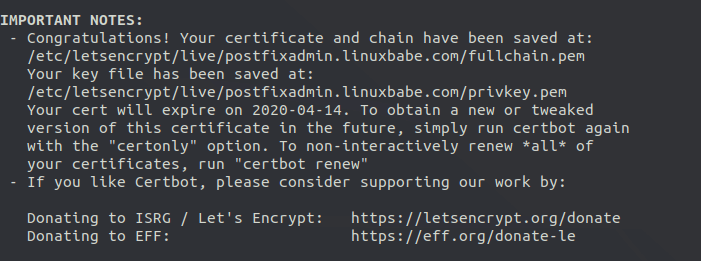

The certificate should now be obtained and automatically installed, which is indicated by the messages below.

postfixadmin https

Step 7: Setting Up Permissions

PostfixAdmin requires a templates_c directory, so create it.

sudo mkdir /var/www/postfixadmin/templates_c

or

sudo mkdir /usr/share/nginx/postfixadmin/templates_c

The web server needs to have read and write access to this directory.

sudo setfacl -R -m u:apache:rwx /var/www/postfixadmin/templates_c/

or

sudo setfacl -R -m u:nginx:rwx /usr/share/nginx/postfixadmin/templates_c/

We also need to change the SELinux context to make it writable.

sudo chcon -t httpd_sys_rw_content_t /var/www/postfixadmin/templates_c/ -R

or

sudo chcon -t httpd_sys_rw_content_t /usr/share/nginx/postfixadmin/templates_c/ -R

By default, SELinux forbids Apache/Nginx to make network requests to other servers, but later Apache/Nginx needs to request TLS certificate status from Let’s Encrypt CA server for OCSP stapling, so we need to tell SELinux to allow Apache/Nginx with the following command.

sudo setsebool -P httpd_can_network_connect 1

If you use Nginx, then you also need to run the following command to give the nginx user read and write permissions to 3 directories.

sudo setfacl -R -m u:nginx:rwx /var/lib/php/opcache/ /var/lib/php/session/ /var/lib/php/wsdlcache/

Restart Apache/Nginx.

sudo systemctl restart httpd

sudo systemctl restart nginx

Step 7: Finish the Installation in Web Browser

Go to postfixadmin.example.com/setup.php to run the web-based setup wizard. First, it will check if all dependencies are installed.

postfixadmin web-based install wizard

If you see the following error,

Invalid query: Specified key was too long; max key length is 1000 bytes

Then you need to log in to MySQL/MariaDB database server as root from command line,

mysql -u root -p

and change the default collation from utf8mb4_general_ci to utf8_general_ci.

MariaDB [(none)]> alter database postfixadmin collate ='utf8_general_ci';

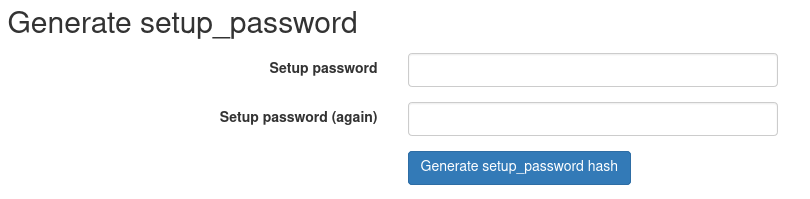

Exit MySQL/MariaDB console and reload the setup.php page. Once all requirements are satisfied, you can create a setup password for PostfixAdmin.

postfixadmin virtual domain

After creating the password hash, PostfixAdmin will display a line like below.

$CONF['setup_password'] = 'hO03pn9kxIo6ZBokLaiVpSddTRczYD35740aa:rk9luqxtr+s32lwqWIHd650acf3ada94e';

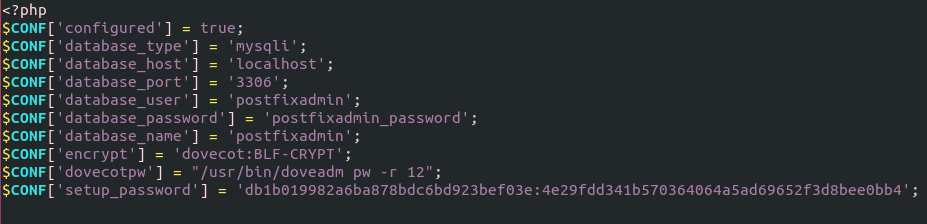

You need to open the config.local.php file and add this line at the end of the file. Next, create the admin account.

postfixadmin ubuntu install

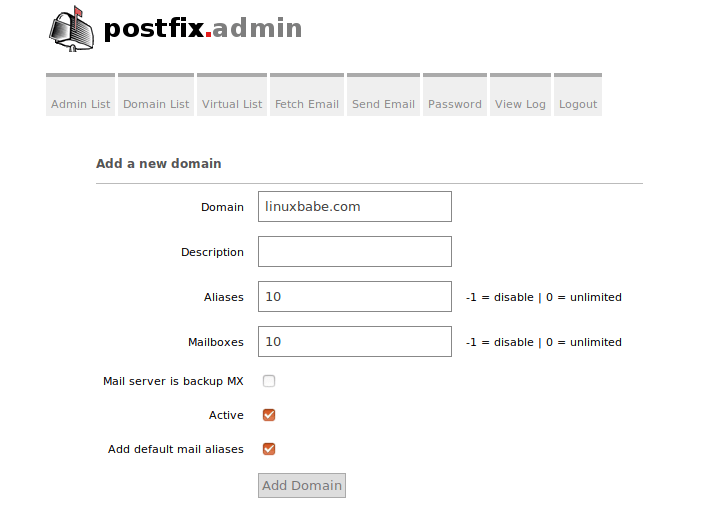

After that, you can log into PostfixAdmin at postfixadmin.example.com/login.php.

postfixadmin virtual mailbox domains

Step 8: Checking Tables in the Database

The PostfixAdmin setup process populates the postfixadmin database with some default tables. It’s helpful for us to know the names and structure of the tables. Log in to MySQL/MariaDB console.

mysql -u root -p

Select the postfixadmin database.

USE postfixadmin;

List all tables in this database.

SHOW TABLES;

Output:

+------------------------+
| Tables_in_postfixadmin |
+------------------------+
| admin                  |
| alias                  |
| alias_domain           |
| config                 |
| domain                 |
| domain_admins          |
| fetchmail              |
| log                    |
| mailbox                |
| quota                  |
| quota2                 |
| vacation               |
| vacation_notification  |
+------------------------+
13 rows in set (0.001 sec)

The 3 most important tables are:

  • domain: contains information on the domains that are using your mail server to send and receive email.
  • mailbox: contains information on every email address, including hashed password and the location of mail files.
  • alias: contains the alias of each email address.

If you are interested, you can check what columns each table contains. For example, the following command will show us the columns in the domain table.

DESCRIBE domain;

Output:

+-------------+--------------+------+-----+---------------------+-------+
| Field       | Type         | Null | Key | Default             | Extra |
+-------------+--------------+------+-----+---------------------+-------+
| domain      | varchar(255) | NO   | PRI | NULL                |       |
| description | varchar(255) | NO   |     | NULL                |       |
| aliases     | int(10)      | NO   |     | 0                   |       |
| mailboxes   | int(10)      | NO   |     | 0                   |       |
| maxquota    | bigint(20)   | NO   |     | 0                   |       |
| quota       | bigint(20)   | NO   |     | 0                   |       |
| transport   | varchar(255) | NO   |     | NULL                |       |
| backupmx    | tinyint(1)   | NO   |     | 0                   |       |
| created     | datetime     | NO   |     | 2000-01-01 00:00:00 |       |
| modified    | datetime     | NO   |     | 2000-01-01 00:00:00 |       |
| active      | tinyint(1)   | NO   |     | 1                   |       |
+-------------+--------------+------+-----+---------------------+-------+

Log out of MySQL/MariaDB console.

EXIT;

Step 9: Configure Postfix to Use MySQL/MariaDB Database

By default, Postfix delivers emails only to users with a local Unix account. To make it deliver emails to virtual users whose information is stored in the database, we need to configure Postfix to use virtual mailbox domains.

First, we need to add MySQL map support for Postfix by installing the postfix-mysql package.

sudo dnf install postfix-mysql

Then edit the Postfix main configuration file.

sudo nano /etc/postfix/main.cf

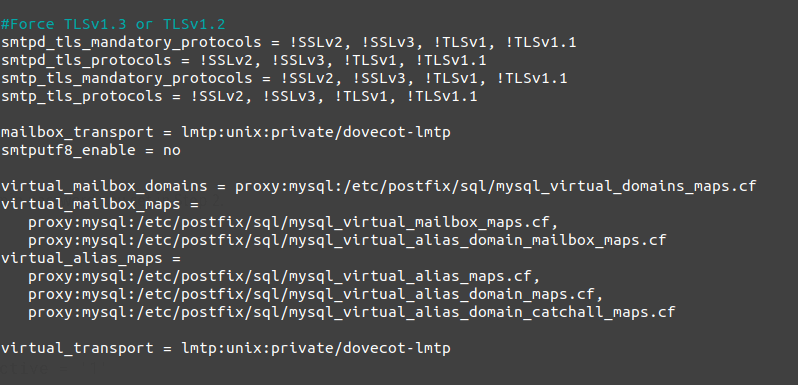

Add the following lines at the end of this file. (In Nano text editor, you can press Ctrl+W, then Ctrl+V to jump to the end of a file.)

virtual_mailbox_domains = proxy:mysql:/etc/postfix/sql/mysql_virtual_domains_maps.cf
virtual_mailbox_maps =
   proxy:mysql:/etc/postfix/sql/mysql_virtual_mailbox_maps.cf,
   proxy:mysql:/etc/postfix/sql/mysql_virtual_alias_domain_mailbox_maps.cf
virtual_alias_maps =
   proxy:mysql:/etc/postfix/sql/mysql_virtual_alias_maps.cf,
   proxy:mysql:/etc/postfix/sql/mysql_virtual_alias_domain_maps.cf,
   proxy:mysql:/etc/postfix/sql/mysql_virtual_alias_domain_catchall_maps.cf

Where:

  • virtual_mailbox_domains points to a file that will tell Postfix how to look up domain information from the database.
  • virtual_mailbox_maps points to files that will tell Postfix how to look up email addresses from the database.
  • virtual_alias_maps points to files that will tell Postfix how to look up aliases from the database.

We want to use dovecot to deliver incoming emails to the virtual users’ message store, so add the following line.

virtual_transport = lmtp:unix:private/dovecot-lmtp

Save and close the file. Next, we need to create the .cf files one by one. Create the sql directory.

sudo mkdir /etc/postfix/sql/

Create the mysql_virtual_domains_maps.cf file.

sudo nano /etc/postfix/sql/mysql_virtual_domains_maps.cf

Add the following content. Replace postfixadmin_password with the postfixadmin password you set in Step 2.

user = postfixadmin
password = postfixadmin_password
hosts = localhost
dbname = postfixadmin
query = SELECT domain FROM domain WHERE domain='%s' AND active = '1'
#query = SELECT domain FROM domain WHERE domain='%s'
#optional query to use when relaying for backup MX
#query = SELECT domain FROM domain WHERE domain='%s' AND backupmx = '0' AND active = '1'
#expansion_limit = 100

Create the mysql_virtual_mailbox_maps.cf file.

sudo nano /etc/postfix/sql/mysql_virtual_mailbox_maps.cf

Add the following content.

user = postfixadmin
password = postfixadmin_password
hosts = localhost
dbname = postfixadmin
query = SELECT maildir FROM mailbox WHERE username='%s' AND active = '1'
#expansion_limit = 100

Create the mysql_virtual_alias_domain_mailbox_maps.cf file.

sudo nano /etc/postfix/sql/mysql_virtual_alias_domain_mailbox_maps.cf

Add the following content.

user = postfixadmin
password = postfixadmin_password
hosts = localhost
dbname = postfixadmin
query = SELECT maildir FROM mailbox,alias_domain WHERE alias_domain.alias_domain = '%d' and mailbox.username = CONCAT('%u', '@', alias_domain.target_domain) AND mailbox.active = 1 AND alias_domain.active='1'

Create the mysql_virtual_alias_maps.cf file.

sudo nano /etc/postfix/sql/mysql_virtual_alias_maps.cf

Add the following content.

user = postfixadmin
password = postfixadmin_password
hosts = localhost
dbname = postfixadmin
query = SELECT goto FROM alias WHERE address='%s' AND active = '1'
#expansion_limit = 100

Create the mysql_virtual_alias_domain_maps.cf file.

sudo nano /etc/postfix/sql/mysql_virtual_alias_domain_maps.cf

Add the following content.

user = postfixadmin
password = postfixadmin_password
hosts = localhost
dbname = postfixadmin
query = SELECT goto FROM alias,alias_domain WHERE alias_domain.alias_domain = '%d' and alias.address = CONCAT('%u', '@', alias_domain.target_domain) AND alias.active = 1 AND alias_domain.active='1'

Create the mysql_virtual_alias_domain_catchall_maps file.

sudo nano /etc/postfix/sql/mysql_virtual_alias_domain_catchall_maps.cf

Add the following content.

# handles catch-all settings of target-domain
user = postfixadmin
password = postfixadmin_password
hosts = localhost
dbname = postfixadmin
query = SELECT goto FROM alias,alias_domain WHERE alias_domain.alias_domain = '%d' and alias.address = CONCAT('@', alias_domain.target_domain) AND alias.active = 1 AND alias_domain.active='1'

Since the database passwords are stored in plain text so they should be readable only by user postfix and root, which is done by executing the following two commands.

sudo chmod 0640 /etc/postfix/sql/*
sudo setfacl -R -m u:postfix:rx /etc/postfix/sql/

Now let’s open the Postfix main configuration file again.

sudo nano /etc/postfix/main.cf

Find the mydestination parameter, which contains a list of domain names that will receive emails delivered to local Unix accounts. Since we are going to use virtual mailbox, so we need to remove the apex domain name from the list. My apex domain name is linuxbabe.com, so I removed it from the mydestination parameter.

mydestination = $myhostname, mail.linuxbabe.com, localhost.linuxbabe.com, localhost

Then add the following lines at the end of this file.

virtual_mailbox_base = /var/vmail
virtual_minimum_uid = 2000
virtual_uid_maps = static:2000
virtual_gid_maps = static:2000

The first line defines the base location of mail files. The remaining 3 lines define which user ID and group ID Postfix will use when delivering incoming emails to the mailbox. We use the user ID 2000 and group ID 2000.

Save and close the file. Restart Postfix for the changes to take effect.

sudo systemctl restart postfix

Next, we need to create a user named vmail with ID 2000 and a group with ID 2000.

sudo adduser vmail --uid 2000 --user-group --no-create-home

Create the mail base location.

sudo mkdir /var/vmail/

Make vmail as the owner.

sudo chown vmail:vmail /var/vmail/ -R

We also need to change the SELinux context to make it writable.

sudo chcon -t mail_spool_t /var/vmail/ -R

Step 10: Configure Dovecot to Use MySQL/MariaDB Database

We also need to configure the Dovecot IMAP server to query user information from the database. First, run the following command to add MySQL support for Dovecot.

sudo dnf install dovecot-mysql

Then edit the 10-mail.conf file.

sudo nano /etc/dovecot/conf.d/10-mail.conf

In part 2, we used the default mail_location.

mail_location = mbox:~/mail:INBOX=/var/mail/%u

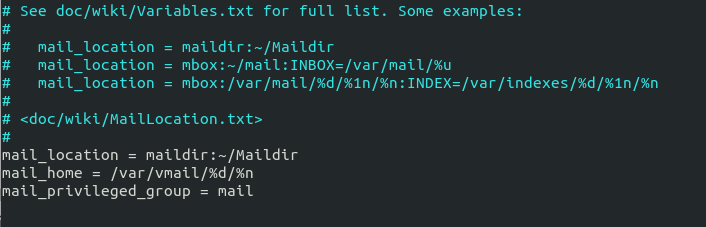

Since we are using virtual mailbox domain now, we need to change the mail_location to:

mail_location = maildir:/var/vmail/%d/%n

Edit the 10-auth.conf file.

sudo nano /etc/dovecot/conf.d/10-auth.conf

In part 2, we used the following value for auth_username_format.

auth_username_format = %n

The %n would drop away the domain if it was given. Because in part 2 we were using local Unix account for the username of every email address, we must use %n to drop away the domain, so users were able to login with the full email address.

Now we are using virtual mailbox domains, which means the username of every email address includes the domain part, so we need to change the auth_username_format as follows. %u won’t drop away the domain. This allows users to login with the full email address.

auth_username_format = %u

Uncomment the following line at the end of the file, so Dovecot can query user information from the database.

!include auth-sql.conf.ext

It can be helpful to add the following two lines in this file to debug login issues. The login errors would be logged into /var/log/maillog file. (Once users can login without problems, you can comment out the following two lines.)

auth_debug = yes
auth_debug_passwords = yes

Create the dovecot-sql.conf.ext file.

sudo nano /etc/dovecot/dovecot-sql.conf.ext

Here is the content that you should have. Replace postfixadmin_password with the postfixadmin password you set in Step 2.

driver = mysql

connect = host=localhost dbname=postfixadmin user=postfixadmin password=postfixadmin_password

default_pass_scheme = MD5-CRYPT

password_query = SELECT username AS user,password FROM mailbox WHERE username = '%u' AND active='1'

user_query = SELECT maildir, 2000 AS uid, 2000 AS gid FROM mailbox WHERE username = '%u' AND active='1'

iterate_query = SELECT username AS user FROM mailbox

Restart Dovecot.

sudo systemctl restart dovecot

When a user tries to log in, Dovecot would generate an MD5-CRYPT hash from the password entered by the user, then compare it with the password hash stored in the database.

Step 11: Add Domain and Mailboxes in PostfixAdmin

Log in to PostfixAdmin web interface as the admin. Click the Domain List tab and select New Domain to add a domain. You can choose how many aliases and mailboxes are allowed for this domain.

postfixadmin add domain

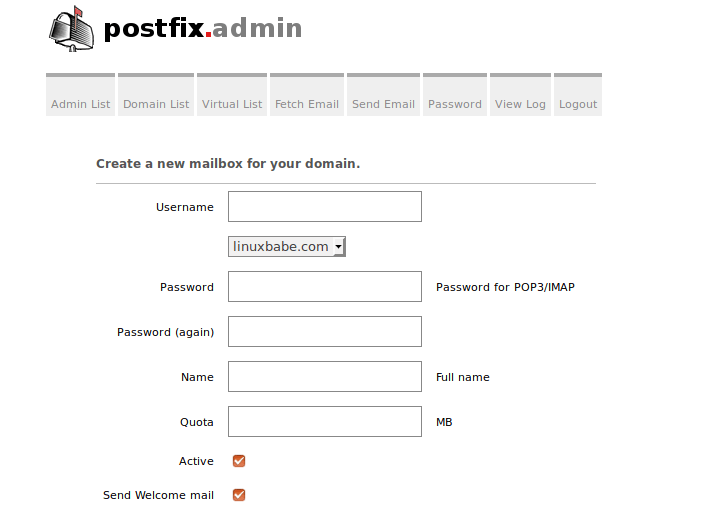

Then click Virtual List tab and select Add Mailbox to add a new email address for your domain.

postfixadmin add mailbox

Next, you can open your desktop email client such as Mozilla Thunderbird and add a mail account.

  • In the incoming server section, select IMAP protocol, enter mail.your-domain.com as the server name, choose port 143 and STARTTLS. Choose normal password as the authentication method.
  • In the outgoing section, select SMTP protocol, enter mail.your-domain.com as the server name, choose port 587 and STARTTLS. Choose normal password as the authentication method.

modoboa-mail-server-desktop-mail-client-configuration-automx

You should now be able to connect to your own email server and also send and receive emails with your desktop email client!

Change User Password in PostfixAdmin

Users can log into PostfixAdmin at https://postfixadmin.example.com/users/login.php, then change their passwords.

Automatically Clean the Junk Folder and Trash Folder

To delete emails in Junk folder for all users, you can run

sudo doveadm expunge -u *@example.com mailbox Junk all

To delete emails in Trash folder for all users, run

sudo doveadm expunge -u *@example.com mailbox Trash all

I think it’s better to clean emails that have been in the Junk or Trash folder for more than 2 weeks, instead of cleaning all emails.

sudo doveadm expunge -u *@example.com mailbox Junk savedbefore 2w

Then add a cron job to automate the job.

sudo crontab -e

Add the following line to clean Junk and Trash folder every day

@daily doveadm expunge -u *@example.com mailbox Junk savedbefore 2w;doveadm expunge -u *@example.com mailbox Trash savedbefore 2w

Next Step

I hope this tutorial helped you install and use PostfixAdmin on CentOS/RHEL to create virtual mailboxes. In part 4, I will show you how to set up SPF and DKIM with Postfix to improve email deliverability and in a future tutorial, I’m going to show you how to host multiple domains with PostfixAdmin. As always, if you found this post useful,  subscribe to our free newsletter to get more tips and tricks. Take care 🙂

Rate this tutorial
[Total: 1 Average: 5]

Leave a Comment

  • Comments with links are moderated by admin before published.
  • Your email address will not be published.
  • Use <pre> ... </pre> HTML tag to quote the output from your terminal/console.
  • Please use the community (https://community.linuxbabe.com) for questions unrelated to this article.
  • I don't have time to answer every question. Making a donation would incentivize me to spend more time answering questions.
