How to Install phpMyAdmin with Apache (LAMP) on Ubuntu 20.04

This tutorial will be showing you how to install phpMyAdmin with Apache, MariaDB, PHP7.4 (LAMP stack) on Ubuntu 20.04 LTS. phpMyAdmin is a free and open-source web-based database management tool written in PHP. It provides a graphical web interface for users to manage MySQL or MariaDB database.

phpMyAdmin allows administrators to:

  • browse through databases and tables;
  • create, copy, rename, alter and drop databases;
  • create, copy, rename, alter and drop tables;
  • perform table maintenance;
  • add, edit and drop fields;
  • execute any SQL-statement, even multiple queries;
  • create, alter and drop indexes;
  • load text files into tables;
  • create and read dumps of tables or databases;
  • export data to SQL, CSV, XML, Word, Excel, PDF and LaTeX formats;
  • administer multiple servers;
  • manage MySQL users and privileges;
  • check server settings and runtime information with configuration hints;
  • check referential integrity in MyISAM tables;
  • create complex queries using Query-by-example (QBE), automatically
  • connecting required tables;
  • create PDF graphics of database layout;
  • search globally in a database or a subset of it;
  • transform stored data into any format using a set of predefined functions, such as displaying BLOB-data as image or download-link;
  • manage InnoDB tables and foreign keys;

Prerequisites

To follow this tutorial, you need a Ubuntu 20.04 OS running on your local computer or on a remote server.

If you are looking for a VPS (Virtual Private Server), then you can create an account at Vultr via my referral link to get $50 free credit (for new users only). And if you need to set up phpMyAdmin with a domain name, I recommend buying domain names from NameCheap because the price is low and they give whois privacy protection for free.

It is assumed that you have already installed LAMP stack on Ubuntu 20.04. If not, please check out the following tutorial.

With that out of the way, let’s get started with installing phpMyAdmin.

Step 1: Download and Install phpMyAdmin on Ubuntu 20.04

phpMyAdmin is included in Ubuntu 20.04 software repository. so we can easily install it with the command below.

sudo apt update
sudo apt install phpmyadmin

The above command will install all necessary dependencies including PHP7 extensions. During the installation, it will prompt you to select a web server to configure. Hit the space bar to select apache2. (An asterisk indicates the item is selected). Then hit Tab key and Enter to confirm your choice.

phpmyadmin lamp

In the next screen, select Yes to configure a database for phpMyAdmin with dbconfig-common.

phpmyadmin apache config

Then set a password for the phpmyadmin user in MariaDB/MySQL.

install-phpmyadmin-ubuntu-20.04-apache2

Once this step is done, a new database named phpmyadmin is created and the database user phpmyadmin has necessary privileges to manage this database. If you are curious as I am, you can log into MariaDB and check what privileges phpmyadmin user has been granted.

You can use the following command to log into MariaDB server.

sudo mysql -u root

Then check the privileges of phpmyadmin user.

show grants for [email protected];

Output:

phpmyadmin database configuration

As you can see, user phpmyadmin has all privileges on database phpmyadmin. Now you can exit by executing:

exit;

Step 2: Accessing phpMyAdmin from a Sub-directory

When installing phpMyAdmin, a configuration file is placed at /etc/apache2/conf-enabled/phpmyadmin.conf, which allows us to access phpMyAdmin via sub-directory. If you have installed other web applications like WordPress on the same Ubuntu 20.04 server, then simply add /phpmyadmin after your domain name in the browser address bar.

example.com/phpmyadmin

phpmyadmin ubuntu

If phpMyAdmin is installed on your local Ubuntu computer, then you can access phpMyAdmin web interface by typing in the following text in the browser address bar.

localhost/phpmyadmin

If the connection is refused or failed to complete, there might be a firewall preventing HTTP requests. If you are using iptables firewall, then you need to run the following commands to open TCP port 80 and 443.

sudo iptables -I INPUT -p tcp --dport 80 -j ACCEPT
sudo iptables -I INPUT -p tcp --dport 443 -j ACCEPT

If you are using UFW firewall, then run this command to open TCP port 80 and 443.

sudo ufw allow 80,443/tcp

Now You can use MariaDB/MySQL username and password to log into phpMyAdmin. If you can’t login as root, go to step 5 to troubleshoot this problem.

Step 3: Access phpMyAdmin From a Sub-domain

If your Ubuntu 20.04 server doesn’t have other Apache virtual host, then you may want to use a sub-domain to access phpMyAdmin web interface. This way, you can enable HTTPS to encrypt the traffic.

First, we need to create an Apache virtual host for phpMyAdmin. The existing phpMyAdmin configuration snippet can be used as a template. Let’s copy it to a new file.

sudo cp /etc/apache2/conf-enabled/phpmyadmin.conf /etc/apache2/sites-available/phpmyadmin.conf

Then edit the new file with a command line text editor, such as Nano.

sudo nano /etc/apache2/sites-available/phpmyadmin.conf

This file lacks <VirtualHost> tags, so we need to add the following lines at the beginning of this file. Replace pma.example.com with your preferred sub-domain for phpMyAdmin. Don’t forget to create DNS A record for this sub-domain.

<VirtualHost *:80>
    ServerName pma.example.com
    DocumentRoot /usr/share/phpmyadmin

    ErrorLog ${APACHE_LOG_DIR}/pma.error.log
    CustomLog ${APACHE_LOG_DIR}/pma.access.log combined

Add the following line at the end of this file to close the <VirtualHost> tag.

</VirtualHost>

Save and close the file. (To save a file in Nano text editor, press Ctrl+O, then press Enter to confirm. To exit, press Ctrl+X.) Then enable this virtual host.

sudo a2ensite phpmyadmin.conf

Reload Apache web server for this change to take effect.

sudo systemctl reload apache2

Now you should be able to access phpMyAdmin web interface via

pma.example.com

how-to-install-phpmyadmin-in-ubuntu

Before entering user credentials in the login form, let’s enable HTTPS.

Step 4: Enable HTTPS on phpMyAdmin with Apache

To secure the phpMyadmin web interface, we can install a free Let’s Encrypt TLS certificate. Run the following command to install the Let’s Encrypt client (certbot) from Ubuntu 20.04 software repository.

sudo apt install certbot python3-certbot-apache

Python3-certbot-apache is the Apache plugin for Certbot. Now run the following command to obtain and install TLS certificate.

sudo certbot --apache --agree-tos --redirect --hsts --staple-ocsp --must-staple -d pma.example.com --email [email protected]

Where:

  • –apache: Use the Apache authenticator and installer
  • –agree-tos: Agree to Let’s Encrypt terms of service
  • –redirect: Enforce HTTPS by adding 301 permanent redirect.
  • –hsts: Add the Strict-Transport-Security header to every HTTP response.
  • –staple-ocsp: Enables OCSP Stapling.
  • –must-staple: Adds the OCSP Must Staple extension to the certificate.
  • -d flag is followed by a list of domain names, separated by comma. You can add up to 100 domain names.
  • –email: Email used for registration and recovery contact.

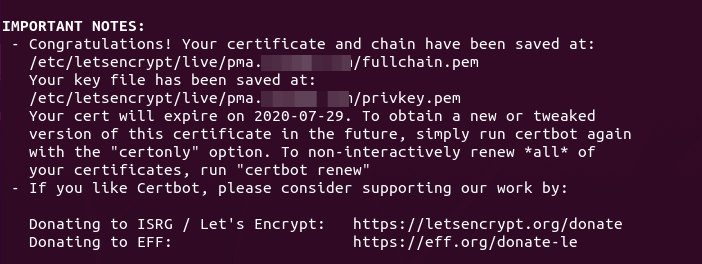

You will be asked if you want to receive emails from EFF(Electronic Frontier Foundation). After choosing Y or N, your TLS certificate will be automatically obtained and configured for you, which is indicated by the message below.

ubuntu-20.04-phpmyadmin-apache-subdomain-config

Step 5: Troubleshoot phpMyAdmin Login Error

If you try to login to phpMyAdmin with MariaDB root account, you may see the following error.

#1698 - Access denied for user 'root '@'localhost'

or

mysqli_real_connect(): (HY000/1698): Access denied for user 'root '@'localhost'

If you log in with user phpmyadmin, you won’t see the above error. However, user phpmyadmin can only be used to manage the phpmyadmin database. The cause of the error is that by default MariDB root user is authenticated via the unix_socket plugin, instead of using the mysql_native_password plugin. To solve this problem, we can create another admin user and grant all privileges to the new admin user.

Log into MariaDB server from the command line.

sudo mysql -u root

Create an admin user with password authentication.

create user [email protected] identified by 'your-preferred-password';

Grant all privileges on all databases.

grant all privileges on *.* to [email protected] with grant option;

Flush privileges and exit;

flush privileges;

exit;

Now you can log into phpMyAmin with the admin account and manage all databases.

mysqli_real_connect HY0001698 Access denied for user 'root '@'localhost'

Wrapping Up

I hope this tutorial helped you install phpMyAdmin with LAMP on Ubuntu 20.04. As always, if you found this post useful, then subscribe to our free newsletter to get more tips and tricks. Take care 🙂
