Getting Started with UFW Firewall on Debian, Ubuntu, Linux Mint Server

This tutorial is going to show you how to use UFW (Uncomplicated FireWall) on Debian/Ubuntu/Linux Mint with some real-world examples. Managing firewall is a basic skill that every system admin needs to know. This article intends to get the reader started with UFW, but does not explore the ins and outs of UFW.

UFW is a front-end for iptables, to make managing a Netfilter firewall easier, hence the name “Uncomplicated Firewall”. It provides a command line interface with syntax similar to OpenBSD’s Packet Filter. It is particularly well-suited as a host-based firewall. UFW is the recommended iptables front-end on Debian based Linux Distros and is usually pre-installed on these distros. By default, UFW set firewall rules for both IPv4 and IPv6 address. Another well-known iptables front-end is firewalld, which is the default firewall application on RPM based Linux distros (RHEL, CentOS, Fedora, OpenSUSE, etc).

Disabling Other Iptables Restore Services

As you probably know, iptables firewall rules will be flushed when the OS shuts down and the iptables program itself does not restore the firewall rules. UFW by default restores firewall rules after system reboot. Before using UFW, it’s important that you check whether there’s another iptables restore service on your system. If there are two restore services, they will conflict with each other, which often results in web applications not available after system reboot.

If you were using iptables firewall directly and now you want to switch to UFW, you just need to disable your iptables restore service. Iptables-persistent is a well-known iptables restore service on Debian/Ubuntu. You can check whether it’s running with the following command.

systemctl status iptables-persistent

If it’s running, you can stop and disable it.

sudo systemctl stop iptables-persistent

sudo systemctl disable iptables-persistent

Or you can remove it from your system.

sudo apt remove iptables-persistent

If you have set up your mail server using iRedMail, be sure to run the following command to check whether the iptables service is running.

systemctl status iptables

This iptables service is shipped with iRedMail to restore iptables firewall rules. If it’s running, you can stop and disable it.

sudo systemctl stop iptables

sudo systemctl disable iptables

Now let’s learn how to use UFW.

Getting Started with UFW on Debian/Ubuntu/Linux Mint Server

UFW is usually pre-installed on Debian/Ubuntu/Linux Mint, although you can always run the following command to install it.

sudo apt install ufw

Note: You can install UFW on Arch Linux with sudo pacman -S ufw, but you also need to enable the UFW systemd service with sudo systemctl enable ufw.

On installation, ufw is disabled. You can check UFW status with:

sudo ufw status

ufw firewall

UFW comes with a default incoming policy of deny, a default forward policy of deny, and a default outgoing policy of allow, with stateful tracking for new connections for incoming and forwarded connections. Before enabling UFW, you need to know what ports are opened on the public IP address of your server, which can be obtained with the help of nmap (Network Mapper).

Install nmap on your Debian/Ubuntu/Linux Mint server and scan opened ports on the public IP address.

sudo apt install nmap

sudo nmap 12.34.56.78

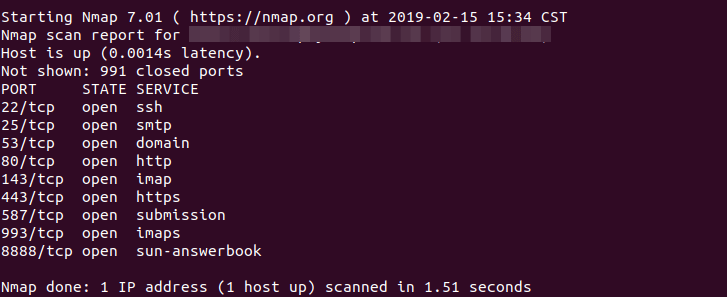

Replace 12.34.56.78 with the actual public IP address of your server. As you can see from the screenshot below, there are several opened ports on my server.

There are also opened ports that listen on localhost only, which can be obtained by running sudo nmap localhost, but we don’t need to worry about them.

Nmap by default only scans TCP ports. We can use the following command to scan UDP ports.

sudo nmap -sU 12.34.56.78

However, UDP scan is terribly slow. If you can’t wait that long, you can use netstat to list UDP ports.

sudo netstat -lnpu

After obtaining the opened TCP and UDP ports on your server, you need to decide which ports should be allowed to accept inbound connections. If there’s an openSSH server running, then you should always allow TCP port 22 before activating UFW. This is achieved via the following command.

sudo ufw allow 22/tcp

or

sudo ufw allow ssh

You probably want to allow HTTP and HTTPS traffic, so run the following command to allow inbound connection on TCP port 80 and 443.

sudo ufw allow 80/tcp

sudo ufw allow 443/tcp

If you run an email server, you need to allow TCP port 25 (SMTP), 587(submission), 143(imap) and 993 (imaps).

sudo ufw allow 25/tcp

sudo ufw allow 587/tcp

sudo ufw allow 143/tcp

sudo ufw allow 993/tcp

If you want your user to be able to use POP3 protocol, you need to allow TCP port 110 (POP3) and 995 (POP3S).

sudo ufw allow 110/tcp

sudo ufw allow 995/tcp

If you run a BIND DNS server, then you need to open TCP and UDP port 53.

sudo ufw allow 53

The above command will allow both the TCP and UDP port. If you want to allow the UDP port only, then

sudo ufw allow 53/udp

Enabling UFW

After you have set allowed ports in UFW, you need to enable UFW. But before doing that, it’s recommended to enable logging with the following command so that you can better understand if your firewall is working correctly.

sudo ufw logging on

The default log level is ‘low’. The log file is /var/log/ufw.log. I usually use the “medium” log level.

sudo ufw logging medium

Now enable UFW.

sudo ufw enable

Note: If you have previously used iptables firewall directly, those iptables firewall rules will be undone once UFW is enabled.

Check status

sudo ufw status

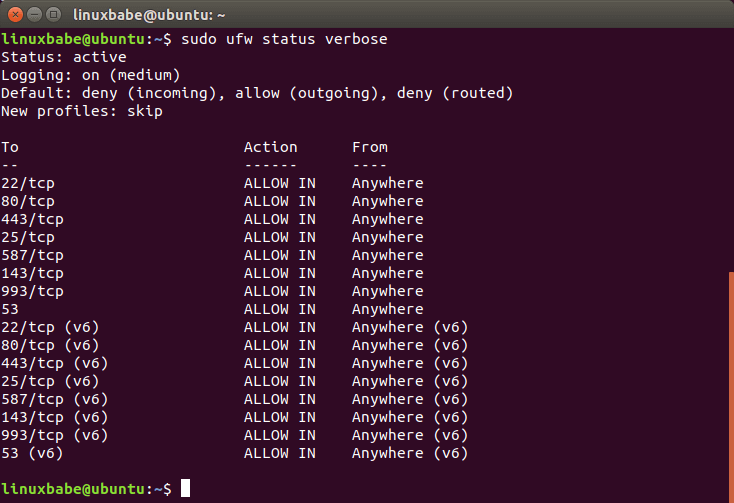

To show more information, run

sudo ufw status verbose

ufw ubuntu

Now you can re-scan your server to find out which ports are still opened.

sudo nmap 12.34.56.78

How to Delete A Firewall Rule

First, you need to get the reference number of the firewall rule you want to delete with the following command.

sudo ufw status numbered

ufw debian

Then you can delete a rule, for example, the 8th rule.

sudo ufw delete 8

Note that the reference number will change after you delete a rule, so you need to run sudo ufw status numbered again to delete another rule.

Reset UFW

If you made a mistake, you can disable and reset firewall to installation defaults.

sudo ufw reset

This is particularly useful for beginners.

UFW Application Profile

Many server programs ship with UFW profiles. You can list all application profiles with:

sudo ufw app list

ufw application profile

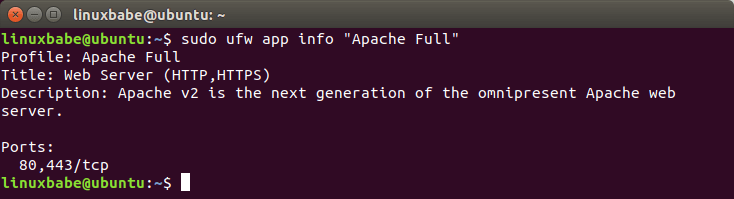

We can show information on a specific application profile, for example, the “Apache Full” profile.

sudo ufw app info "Apache Full"

ufw ubuntu 18.04

We can see that the port used by this profile are TCP port 80 and 443. If we enable this application profile with the following command, TCP port 80 and 443 will be allowed.

sudo ufw allow "Apache Full"

Creating IP Address Blacklist with UFW

Let’s say there’s a spammer who is constantly trying to send spam to your mail server. You can use UFW to block the spammer’s IP address from accessing TCP port 25 of your mail server, with the following command. Replace 12.34.56.78 with the spammer’s IP address.

sudo ufw insert 1 deny in from 12.34.56.78 to any port 25 proto tcp

Note that newly added firewall rules are put in the bottom by default. If you previously allowed access to port 25 from anywhere, then you need to insert the deny rule as the first rule, just like above, so the deny rule will be applied first. You can always insert new deny rule as the first rule.

sudo ufw insert 1 deny in from 78.56.34.12 to any port 25 proto tcp

You can also block an IP address range like below.

sudo ufw insert 1 deny in from 192.168.0.0/24 to any port 25 proto tcp

To block an IP address from accessing all ports on your server, run

sudo ufw insert 1 deny in from 12.34.56.78

Creating IP Address Whitelist with UFW

Now let’s say you run a OpenSSH server and you only want to allow certain IP address to log in to your server through SSH. You can use UFW to create an IP address whitelist. For example, I don’t have static IP address in my home, but I have set up several VPN servers on the cloud, so now I can configure UFW to allow inbound connection to port 22 from the IP address of my VPN server only.

First, add the IP address to the allow list.

sudo ufw insert 1 allow in from 12.34.56.78 to any port 22 proto tcp

Then you need to get the reference number of the allow SSH from anywhere rule and delete that rule.

sudo ufw status numbered

sudo ufw delete reference-number

ufw ip whitelist

Note that you need to delete both the IPv4 and IPv6 rule. Also notice that if you delete the upper rule first, the reference number of the lower rule will change.

From here on out, only your IP address can access TCP port 22.

How to Use IPv6 Address in UFW

First, make sure the IPV6=yes is set in /etc/default/ufw file. If it’s not set, then add it in that file and restart UFW (sudo systemctl restart ufw).

ufw ipv6 address

Then you can just replace IPv4 with IPv6 address in ufw commands like below.

sudo ufw allow in from 2607:f8b0:4005:804::200e to any port 587

Note that you can’t insert an IPv6 rule between IPv4 rules. IPv6 rules should always be placed after IPv4 rules.

How to Set Up IP Masquerading with UFW

Sometimes you want to set up your own VPN server, then you will need to set up IP masquerading on your VPN server so that it becomes a virtual router for VPN clients. Unfortunately, UFW doesn’t provide a convenient way to do this. We have to add iptables command in a UFW configuration file.

sudo nano /etc/ufw/before.rules

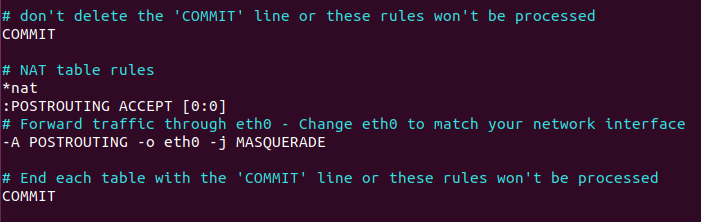

By default, there are some rules for the filter table. Add the following lines at the end of this file.

# NAT table rules
*nat
:POSTROUTING ACCEPT [0:0]
# Forward traffic through eth0 - Change eth0 to match your network interface
-A POSTROUTING -o eth0 -j MASQUERADE

# End each table with the 'COMMIT' line or these rules won't be processed
COMMIT

ufw nat
Notice that if your main network interface isn’t eth0, you need to change eth0 to your network interface name, which can be obtained with the ip addr command. And because we are adding firewall rules to a new table, namely the nat table, we need to add the ‘COMMIT’ line.

Save and close the file. Then edit /etc/default/ufw file.

sudo nano /etc/default/ufw

Change the default forward policy from “DROP” to “ACCEPT”.

DEFAULT_FORWARD_POLICY="ACCEPT"

Save and close the file. Then restart UFW.

sudo ufw disable

sudo ufw enable

or simply

sudo systemctl restart ufw

Although this is not related to UFW configuration, but in order to route packet, you also need to set up IP forwarding. This can be done by setting the following at the end of /etc/sysctl.conf file.

net.ipv4.ip_forward = 1

Then apply the changes with the following command.

sudo sysctl -p

How to Set Up Port Forwarding in UFW

What if you use UFW on your router, and you want to route packets such as HTTP requests to internal LAN hosts? In this case, you need to set up port forwarding. Edit the /etc/ufw/before.rules file.

sudo nano /etc/ufw/before.rules

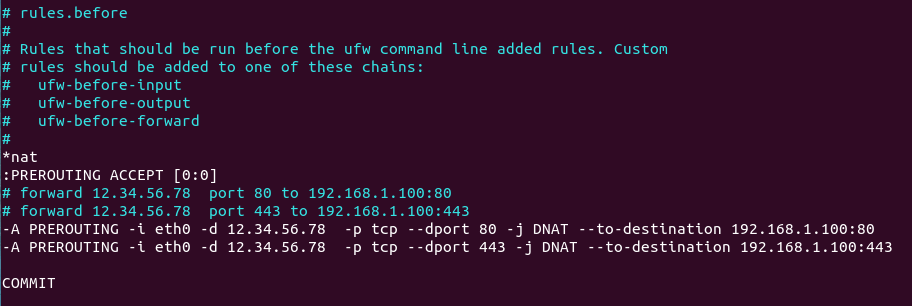

Then add the following lines in the NAT table, above the COMMIT line. Replace 12.34.56.78 with your router’s public IP address.

:PREROUTING ACCEPT [0:0]
# forward 12.34.56.78  port 80 to 192.168.1.100:80
# forward 12.34.56.78  port 443 to 192.168.1.100:443
-A PREROUTING -i eth0 -d 12.34.56.78  -p tcp --dport 80 -j  DNAT --to-destination 192.168.1.100:80
-A PREROUTING -i eth0 -d 12.34.56.78  -p tcp --dport 443 -j  DNAT --to-destination 192.168.1.100:443

This tells UFW to forward HTTP and HTTPS requests to the 192.168.100 host in the local network. Restart UFW for the changes to take effect.

sudo systemctl restart ufw

If the 192.168.1.100 host is also running UFW, then you need to allow port 80 and 443 in UFW.

sudo ufw allow 80/tcp
sudo ufw allow 443/tcp

You also need to enable IP forwarding in /etc/sysctl.conf file as mentioned above.

UFW and fail2ban

Fail2ban is a program that uses iptables firewall to prevent servers from brute-force attacks. UFW and Fail2ban won’t interfere with each other.

That’s it! I hope this article helped you use UFW on Debian, Ubuntu and Linux Mint. As always, if you found this post useful, then subscribe to our free newsletter to get more tips and tricks. Take care 🙂
