Set Up Your Own WireGuard VPN Server on Debian 11 & Debian 10

This tutorial is going to show you how to set up your own WireGuard VPN server on Debian 11 bullseye and Debian 10 Buster. WireGuard is made specifically for the Linux kernel. It runs inside the Linux kernel and allows you to create fast, modern, and secure VPN tunnel.

Features of WireGuard VPN

  • Lightweight and super fast speed, blowing OpenVPN out of the water.
  • Cross-platform. WireGuard can run on Linux, BSD, macOS, Windows, Android, iOS, and OpenWRT.
  • User authentication is done by exchanging public keys, similar to SSH keys.
  • It assigns static tunnel IP addresses to VPN clients. Some folks may not like it, but it can be useful in some cases.
  • Mobile devices can switch between Wi-Fi and mobile network seamlessly without dropping any connectivity.
  • It aims to replace OpenVPN and IPSec in most use cases.

Requirements

To follow this tutorial, you will need a VPS (Virtual Private Server) that can access blocked websites freely (Outside of your country or Internet filtering system). I recommend Kamatera VPS, which features:

  • 30 days free trial.
  • Starts at $4/month (1GB RAM)
  • High-performance KVM-based VPS
  • 9 data centers around the world, including United States, Canada, UK, Germany, The Netherlands, Hong Kong, and Isreal.

Follow the tutorial linked below to create your Linux VPS server at Kamatera.

Once you have a VPS running Debian, follow the instructions below.

This tutorial assumes that the VPN server and VPN client are both running Debian operating system.

Step 1: Install WireGuard on Debian Server and Desktop

Log into your Debian server. WireGuard is included in the Debian 11 (Bullseye) repository, so you can run the following commands to install it.

sudo apt update
sudo apt install wireguard wireguard-tools linux-headers-$(uname -r)

Debian 10 users need to add the backport repository with the following command.

echo "deb http://deb.debian.org/debian buster-backports main" | sudo tee /etc/apt/sources.list.d/buster-backports.list

Then install WireGuard.

sudo apt update
sudo apt -t buster-backports install wireguard wireguard-tools wireguard-dkms linux-headers-$(uname -r)

Use the same commands to install WireGuard on your local Debian computer (the VPN client). Note that you also need to install the openresolv package on the client to configure DNS server.

sudo apt install openresolv

Step 2: Generate Public/Private Keypair

Server

Run the following command on the Debian server to create a public/private key pair, which will be saved under /etc/wireguard/ directory.

wg genkey | sudo tee /etc/wireguard/server_private.key | wg pubkey | sudo tee /etc/wireguard/server_public.key

Debian-wireguard-VPN-server-generate-public-private-key

Client

Run the following command to create a public/private key pair on the local Debian computer (the VPN client).

wg genkey | sudo tee /etc/wireguard/client_private.key | wg pubkey | sudo tee /etc/wireguard/client_public.key

Step 3: Create WireGuard Configuration File

Server

Use a command-line text editor like Nano to create a WireGuard configuration file on the Debian server. wg0 will be the network interface name.

sudo nano /etc/wireguard/wg0.conf

Copy the following text and paste it to your configuration file. You need to use your own server private key and client public key.

[Interface]
Address = 10.10.10.1/24
ListenPort = 51820
PrivateKey = cD+ZjXiVIX+0iSX1PNijl4a+88lCbDgw7kO78oXXLEc=

[Peer]
PublicKey = AYQJf6HbkQ0X0Xyt+cTMTuJe3RFwbuCMF46LKgTwzz4=
AllowedIPs = 10.10.10.2/32

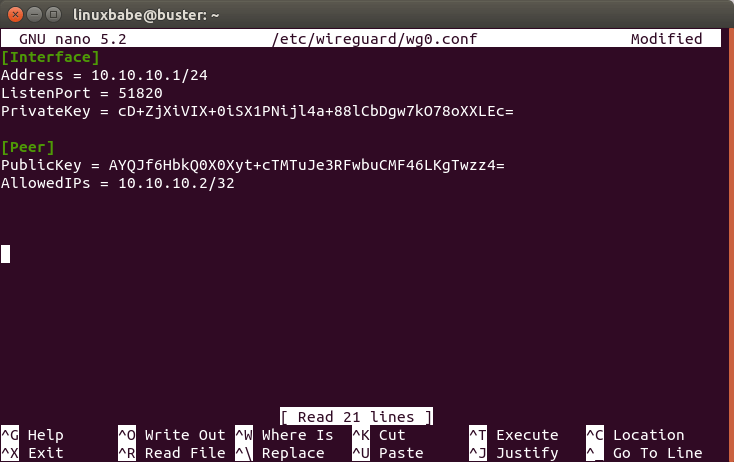

Debian-wireguard-VPN-server-configuration-file-wg0

Where:

  • Address: Specify the private IP address of the VPN server. Here I’m using the 10.10.10.0/24 network range, so it won’t conflict with your home network range. (Most home routers use 192.168.0.0/24 or 192.168.1.0/24). 10.10.10.1 is the private IP address for the VPN server.
  • PrivateKey: The private key of VPN server, which can be found in the /etc/wireguard/server_private.key file on the server.
  • ListenPort: WireGuard VPN server will be listening on UDP port 51820, which is the default.
  • PublicKey: The public key of VPN client, which can be found in the /etc/wireguard/client_public.key file on the client computer.
  • AllowedIPs: IP addresses the VPN client is allowed to use. In this example, the client can only use the 10.10.10.2 IP address inside the VPN tunnel.

Save and close the file. (To save a file in Nano text editor, press Ctrl+O, then press Enter to confirm. Press Ctrl+X to exit.)

Change the file permission mode so that only root user can read the files.

sudo chmod 600 /etc/wireguard/ -R

Client

Use a command-line text editor like Nano to create a WireGuard configuration file on your local Debian computer. wg-client0 will be the network interface name.

sudo nano /etc/wireguard/wg-client0.conf

Copy the following text and paste it to your configuration file. You need to use your own client private key and server public key.

[Interface]
Address = 10.10.10.2/24
DNS = 10.10.10.1
PrivateKey = cOFA+x5UvHF+a3xJ6enLatG+DoE3I5PhMgKrMKkUyXI=

[Peer]
PublicKey = kQvxOJI5Km4S1c7WXu2UZFpB8mHGuf3Gz8mmgTIF2U0=
AllowedIPs = 0.0.0.0/0
Endpoint = 12.34.56.78:51820
PersistentKeepalive = 25

Where:

  • Address: Specify the private IP address of the VPN client.
  • DNS: specify 10.10.10.1 (the VPN server) as the DNS server. It will be configured via the resolvconf command. You can also specify multiple DNS servers for redundancy like this: DNS = 10.10.10.1 8.8.8.8
  • PrivateKey: The client’s private key, which can be found in the /etc/wireguard/client_private.key file on the client computer.
  • PublicKey: The server’s public key, which can be found in the /etc/wireguard/server_public.key file on the server.
  • AllowedIPs: 0.0.0.0/0 represents the whole Internet, which means all traffic to the Internet should be routed via the VPN.
  • Endpoint: The public IP address and port number of VPN server. Replace 12.34.56.78 with your server’s real public IP address.
  • PersistentKeepalive: Send an authenticated empty packet to the peer every 25 seconds to keep the connection alive. If PersistentKeepalive isn’t enabled, the VPN server might not be able to ping the VPN client.

Save and close the file.

Change the file mode so that only root user can read the files.

sudo chmod 600 /etc/wireguard/ -R

Step 4: Enable IP Forwarding on the Server

In order for the VPN server to route packets between VPN clients and the Internet, we need to enable IP forwarding. Edit sysctl.conf file.

sudo nano /etc/sysctl.conf

Add the following line at the end of this file.

net.ipv4.ip_forward = 1

Save and close the file. Then apply the changes with the below command. The -p option will load sysctl settings from /etc/sysctl.conf file. This command will preserve our changes across system reboots.

sudo sysctl -p

Step 5: Configure IP Masquerading on the Server

We need to set up IP masquerading in the server firewall, so that the server becomes a virtual router for VPN clients. I will use UFW, which is a front end to the iptables firewall. Install UFW on Debian with:

sudo apt install ufw

First, you need to allow SSH traffic.

sudo ufw allow 22/tcp

Next, find the name of your server’s main network interface.

ip addr

As you can see, it’s named ens3 on my Debian server.

debian-wireguard-firewall

To configure IP masquerading, we have to add iptables command in a UFW configuration file.

sudo nano /etc/ufw/before.rules

By default, there are some rules for the filter table. Add the following lines at the end of this file. Replace ens3 with your own network interface name.

# NAT table rules
*nat
:POSTROUTING ACCEPT [0:0]
-A POSTROUTING -o ens3 -j MASQUERADE

# End each table with the 'COMMIT' line or these rules won't be processed
COMMIT

In Nano text editor, you can go to the end of the file by pressing Ctrl+W, then pressing Ctrl+V.

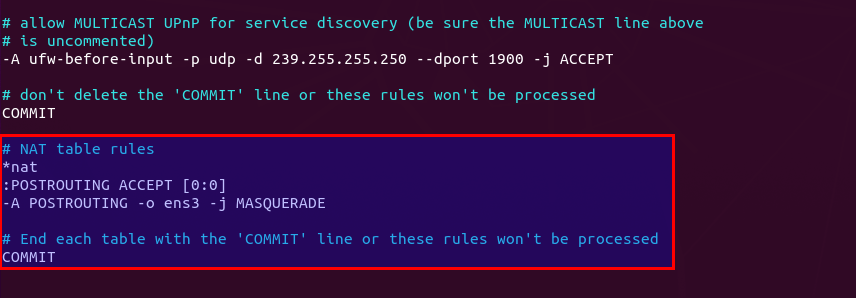

UFW NAT table POSTROUTING MASQUERADE

The above lines will append (-A) a rule to the end of of POSTROUTING chain of nat table. It will link your virtual private network with the Internet. And also hide your network from the outside world. So the Internet can only see your VPN server’s IP, but can’t see your VPN client’s IP, just like your home router hides your private home network.

By default, UFW forbids packet forwarding. We can allow forwarding for our private network. Find the ufw-before-forward chain in this file and add the following 3 lines, which will accept packet forwarding if the source IP or destination IP is in the 10.10.10.0/24 range.

# allow forwarding for trusted network
-A ufw-before-forward -s 10.10.10.0/24 -j ACCEPT
-A ufw-before-forward -d 10.10.10.0/24 -j ACCEPT

ufw allow packet fowarding

Save and close the file. Then enable UFW.

sudo ufw enable

If you have enabled UFW before, then you can use systemctl to restart UFW.

sudo systemctl restart ufw

Now if you list the rules in the POSTROUTING chain of the NAT table by using the following command:

sudo iptables -t nat -L POSTROUTING

You can see the Masquerade rule.

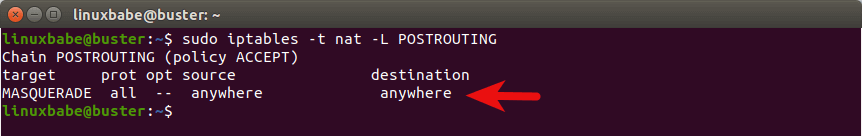

wireguard-IP-Masquerading-ufw-debian

Step 6: Install a DNS Resolver on the Server

Since we specified the VPN server as the DNS server for client, we need to run a DNS resolver on the VPN server. We can install the bind9 DNS server.

sudo apt install bind9

Once it’s installed, BIND will automatically start. You can check its status with:

systemctl status bind9

Sample output:

 named.service - BIND Domain Name Server
     Loaded: loaded (/lib/systemd/system/named.service; enabled; vendor preset: enabled)
     Active: active (running) since Sun 2020-05-17 08:11:26 UTC; 37s ago
       Docs: man:named(8)
   Main PID: 13820 (named)
      Tasks: 5 (limit: 1074)
     Memory: 14.3M
     CGroup: /system.slice/named.service
             └─13820 /usr/sbin/named -f -u bind

If it’s not running, start it with:

sudo systemctl start bind9

Edit the BIND DNS server’s configuration file.

sudo nano /etc/bind/named.conf.options

Add the following line to allow VPN clients to send recursive DNS queries.

allow-recursion { 127.0.0.1; 10.10.10.0/24; };

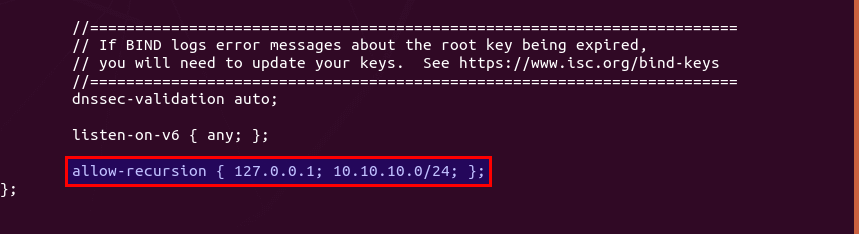

wireguard BIND DNS resolver

Save and close the file. Restart BIND9 for the changes to take effect.

sudo systemctl restart bind9

Then you need to run the following command to allow VPN clients to connect to port 53.

sudo ufw insert 1 allow in from 10.10.10.0/24

Step 7: Open WireGuard Port in Firewall

Run the following command to open UDP port 51820 on the server.

sudo ufw allow 51820/udp

Step 8: Start WireGuard

server

Run the following command on the server to start WireGuard.

sudo wg-quick up /etc/wireguard/wg0.conf

To stop it, run

sudo wg-quick down /etc/wireguard/wg0.conf

You can also use systemd service to start WireGuard.

sudo systemctl start [email protected]

Enable auto-start at system boot time.

sudo systemctl enable [email protected]

Check its status with the following command. Its status should be active (exited).

systemctl status [email protected]

Now WireGuard server is ready to accept client connections.

Client

Start WireGuard.

sudo systemctl start [email protected]

Enable auto-start at system boot time.

sudo systemctl enable [email protected]

Check its status:

systemctl status [email protected]

Now go to this website: http://icanhazip.com/ to check your public IP address. If everything went well, it should display your VPN server’s public IP address instead of your client computer’s public IP address.

You can also run the following command to get the current public IP address.

curl https://icanhazip.com

Troubleshooting Tips

Ping test

You can ping from the VPN server to VPN client (ping 10.10.10.2) to see if the tunnel works. If you see the following error message in the ping,

ping: sendmsg: Required key not available

it might be that the AllowedIPs  parameter is wrong, like a typo.

If the ping error message is

ping: sendmsg: Destination address required

it could be that the private/public key is wrong in your config files.

Not able to browse the Internet

If the VPN tunnel is successfully established, but the client public IP address doesn’t change, that’s because the masquerading or forwarding rule in your UFW config file is not working. I once had a typo in the /etc/ufw/before.rules file, which caused my computer not to be able to browse the Internet.

Note that I don’t recommend using SaveConfig=true in the [Interface] section of the WireGuard configuration file. SaveConfig tells WireGuard to save the runtime configuration on shutdown. So if you add additional [Peer] in the configuration file and then restart WireGuard, your newly-added configs will be overwritten.

Enable Debug logging in Linux Kernel

If you use Linux kernel 5.6+, you can enable debug logging for WireGuard with the following command.

sudo su -
echo module wireguard +p > /sys/kernel/debug/dynamic_debug/control

Then you can view the debug logs with

sudo dmesg -wH

or

sudo journalctl -kf

Restart

If your VPN still doesn’t work, try restarting the VPN server.

sudo systemctl restart [email protected]

Then stop the VPN client.

sudo systemctl stop [email protected]

And upgrade software packages on the VPN client.

sudo apt update; sudo apt upgrade

Next, reboot the VPN client.

sudo shutdown -r now

sudo systemctl start [email protected]

Adding Additional VPN Clients

WireGuard is designed to associate one IP address with one VPN client. To add more VPN clients, you need to create a unique private/public key pair for each client, then add each VPN client’s public key in the server’s config file (/etc/wireguard/wg0.conf) like this:

[Interface]
Address = 10.10.10.1/24
PrivateKey = UIFH+XXjJ0g0uAZJ6vPqsbb/o68SYVQdmYJpy/FlGFA=
ListenPort = 51820

[Peer]
PublicKey = 75VNV7HqFh+3QIT5OHZkcjWfbjx8tc6Ck62gZJT/KRA=
AllowedIPs = 10.10.10.2/32

[Peer]
PublicKey = YYh4/1Z/3rtl0i7cJorcinB7T4UOIzScifPNEIESFD8=
AllowedIPs = 10.10.10.3/32

[Peer]
PublicKey = EVstHZc6QamzPgefDGPLFEjGyedJk6SZbCJttpzcvC8=
AllowedIPs = 10.10.10.4/32

Each VPN client will have a static private IP address (10.10.10.2, 10.10.10.3, 10.10.10.4, etc). Restart the WireGuard server for the changes to take effect.

sudo systemctl restart [email protected]

Then add WireGuard configuration on each VPN client as usual.

Policy Routing, Split Tunneling & VPN Kill Switch

Now I will show you how to use policy routing, split tunneling, and VPN kill switch with WireGuard VPN. Note that it’s not recommended to use them in conjunction with each other. If you use policy routing, then you should not enable split tunneling or VPN kill switch, and vice versa.

Policy Routing

By default, all traffic on the VPN client will be routed through the VPN server. Sometimes you may want to route only a specific type of traffic, based on the transport layer protocol and the destination port. This is known as policy routing.

Policy routing is configured on the client computer, and we need to stop the WireGuard client process.

sudo systemctl stop [email protected]

Then edit the client configuration file.

sudo nano /etc/wireguard/wg-client0.conf

For example, if you add the following 3 lines in the [interface] section, then WireGuard will create a routing table named “1234” and add the ip rule into the routing table. In this example, traffic will be routed through VPN server only when TCP is used as the transport layer protocol and the destination port is 25, i.e, when the client computer sends emails.

Table = 1234
PostUp = ip rule add ipproto tcp dport 25 table 1234
PreDown = ip rule delete ipproto tcp dport 25 table 1234

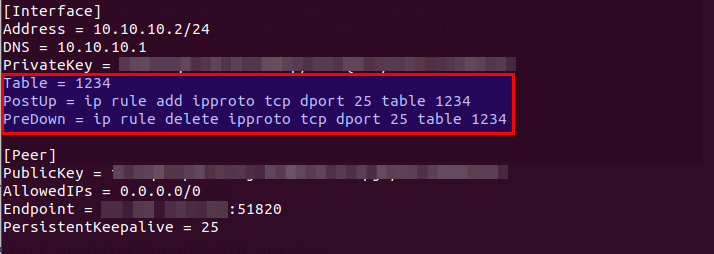

wireguard-vpn-policy-routing-debian

Save and close the file. Then start WireGuard client again.

sudo systemctl start [email protected]

Split Tunneling

By default, all traffic on the VPN client will be routed through the VPN server. Here’s how to enable split tunneling, so only traffic to the 10.10.10.0/24 IP range will be tunneled through WireGuard VPN. This is useful when you want to build a private network for several cloud servers, because VPN clients will run on cloud servers and if you use a full VPN tunnel, then you will probably lose connection to the cloud servers.

Edit the client configuration file.

sudo nano /etc/wireguard/wg-client0.conf

Change

AllowedIPs = 0.0.0.0/0

To

AllowedIPs = 10.10.10.0/24

So traffic will be routed through VPN only when the destination address is in the 10.10.10.0/24 IP range. Save and close the file. Then restart WireGuard client.

sudo systemctl restart [email protected]

VPN Kill Switch

By default, your computer can access the Internet via the normal gateway when the VPN connection is disrupted. You may want to enable the kill switch feature, which prevents the flow of unencrypted packets through non-WireGuard interfaces.

Stop the WireGuard client process.

sudo systemctl stop [email protected]

Edit the client configuration file.

sudo nano /etc/wireguard/wg-client0.conf

Add the following two lines in the [interface] section.

PostUp = iptables -I OUTPUT ! -o %i -m mark ! --mark $(wg show %i fwmark) -m addrtype ! --dst-type LOCAL -j REJECT
PreDown = iptables -D OUTPUT ! -o %i -m mark ! --mark $(wg show %i fwmark) -m addrtype ! --dst-type LOCAL -j REJECT

Like this:

[Interface]
Address = 10.10.10.2/24
DNS = 10.10.10.1
PrivateKey = cOFA+x5UvHF+a3xJ6enLatG+DoE3I5PhMgKrMKkUyXI=
PostUp = iptables -I OUTPUT ! -o %i -m mark ! --mark $(wg show %i fwmark) -m addrtype ! --dst-type LOCAL -j REJECT
PreDown = iptables -D OUTPUT ! -o %i -m mark ! --mark $(wg show %i fwmark) -m addrtype ! --dst-type LOCAL -j REJECT

[Peer]
PublicKey = kQvxOJI5Km4S1c7WXu2UZFpB8mHGuf3Gz8mmgTIF2U0=
AllowedIPs = 0.0.0.0/0
Endpoint = 12.34.56.78:51820
PersistentKeepalive = 25

Save and close the file. Then start the WireGuard client.

sudo systemctl start [email protected]

Installing Linux Kernel 5.x on Debian 10

The current Linux kernel version on Debian 10 is 4.19. In step 1, we added the backport repository on Debian 10. The backport repository includes Linux kernel 5.10, at the time of this writting. You may probably know that the wireguard module is included in the Linux kernel starting from version 5.4. If we install Linux kernel 5.10 on Debian 10, we don’t need to build the wireguard module when the system is upgrading the Linux kernel. As a matter of fact, my Debian 10 server once had a problem in building the wireguard module with wireguard-dkms.

Note that by the time you read this article, the Debian 10 backport repository might have removed kernel 5.10 and included kernel 5.11. Simply repalce 5.8 with 5.9 in the following commands.

To install Linux kernel 5.8 on Debian 10 cloud servers, run the following command.

sudo apt install linux-image-5.10.0-0.bpo.7-cloud-amd64 linux-headers-5.10.0-0.bpo.7-cloud-amd64

To install Linux kernel 5.8 on a Debian 10 PC, run the following command.

 sudo apt install linux-image-5.10.0-0.bpo.7-amd64 linux-headers-5.10.0-0.bpo.7-amd64

Then restart your Debian 10 box.

sudo shutdown -r now

Check your Linux kernel version.

uname -r

Sample output

5.10.0-0.bpo.7-cloud-amd64

Although we no longer need the wireguard-dkms package, it’s a dependency for the wireguard package, so we can’t remove it from the system. You will probably see the following error when upgrading the wireguard package.

Error! The dkms.conf for this module includes a BUILD_EXCLUSIVE directive which
does not match this kernel/arch. This indicates that it should not be built

This indicates wireguard-dkms is trying to build the wireguard module into the Linux kernel, but Linux 5.10 includes a native wireguard module, so the build operation is prevented and you can ignore this error.

Wrapping Up

That’s it! I hope this tutorial helped you install and configure WireGuard on Debian. As always, if you found this post useful, then subscribe to our free newsletter to get more tips and tricks 🙂

Rate this tutorial
[Total: 3 Average: 4.3]

10 Responses to “Set Up Your Own WireGuard VPN Server on Debian 11 & Debian 10

  • Thanks for the lovely tutorial…
    Could you also include how to configure SPLIT TUNNELING so that you can configure certain services through VPN and rest of it through your ISP ?

    • I think the “policy routing” in this article is what you want with split tunneling by services. You just need to adjust the protocol type and destination port.

      If you need split tunneling by IP addresses like in a typical corporate environment, edit the client configuration file.

      sudo nano /etc/wireguard/wg-client0.conf

      Change

      AllowedIPs = 0.0.0.0/0

      To

      AllowedIPs = 10.10.10.0/24

      So traffice will be routed through VPN only when the destination address is in the 10.10.10.0/24 network range.
      Save and close the file. Then restart WireGuard client.

      sudo systemctl restart [email protected]

      Note that it’s generally not a good idea to use split tunneling and policy routing at the same time. When using policy routing, the AllowedIPs should be set to 0.0.0.0/0.

  • Does WireGuard work in China? What other than OpenConnect work in China?
    Did you compare the speed of the two?
    Thanks.

    • Yes, it works in China.

      WireGuard is super fast, no doubt about it. OpenConnect VPN is very fast too, when you enable the TCP BBR algorithm. Actually you have to disable UDP in OpenConnect and use TCP only, because the Great Firewall of China (GFW) blocks DTLS connections.

      When it comes to speed, it doesn’t make much difference by switching to WireGuard, because of the bad network connection from China to the international Internet. The maximum download speed at my home is capped around 16Mbit/s, when downloading files from a server outside of China, though my ISP provides me with 100Mbit/s bandwidth.

      WireGuard can be easily identified by GFW, so it might be blocked at any time. OpenConnect VPN looks like normal HTTPS connection, so I prefer to use OpenConnect VPN to bypass GFW and use WireGuard for other use cases.

      • Thanks for explaining all that. I think there’s no need for WireGuard in countries where vpn can be blocked like China, Middle East, Iran, etc… OpenConnect is still the way to go. What do you think? Should we have both setup on the server?

    • I’m going to set up a remote desktop to bypass GFW. I will use the Guacamole software, which allows you to type an URL in the web browser and use the remote desktop. No other software is needed on the client computer, and the traffic is identical to HTTPS.

  • If you forget to install the kernel headers for your new 4.x kernel before updating to it with apt, the update of wireguard-dkms will fail. To fix this, this is what you do:

    1. Reboot to run the new kernel version.
    2. sudo apt-get install linux-headers-$(uname -r)
    3. sudo dpkg-reconfigure wireguard-dkms
    4. Reboot

  • with this line at the # NAT table rules in /etc/ufw/before.rules

    *nat


    seems to cause this

    # ufw enable
    Command may disrupt existing ssh connections. Proceed with operation (y|n)? y
    ERROR: problem running ufw-init
    Bad argument `*nat'
    Error occurred at line: 77
    Try `iptables-restore -h' or 'iptables-restore --help' for more information.

    Problem running '/etc/ufw/before.rules'


    So I commented that line out and ufw enable works.

    should *nat be something else?

    • The instructions in this article are correct. Maybe you put *nat in the wrong place. It should not be placed inside the filter table. nat is a table of its own. Each table should be ended with a COMMIT line.

      Please check the screenshot in the article.

  • putting the *nat rule after the last COMMIT line fixed my error. thank you for the help.

Leave a Comment

  • Comments with links are moderated by admin before published.
  • Your email address will not be published.
  • Use <pre> ... </pre> HTML tag to quote the output from your terminal/console.
  • Please use the community (https://community.linuxbabe.com) for questions unrelated to this article.
  • I don't have time to answer every question. Making a donation would incentivize me to spend more time answering questions.

The maximum upload file size: 2 MB. You can upload: image. Links to YouTube, Facebook, Twitter and other services inserted in the comment text will be automatically embedded. Drop file here
