How to Set Up OpenLDAP Server on Ubuntu 22.04/20.04

In this tutorial, we are going to take a look at installing and Configuring OpenLDAP server on Ubuntu 22.04/20.04 LTS. We will also install the phpLDAPadmin web-based management tool.

What is OpenLDAP

OpenLDAP is an open-source and fast directory server that provides network clients with directory services. Client applications connect to OpenLDAP server using the Lightweight Directory Access Protocol (LDAP) to access organizational information stored on that server.  Given the appropriate access, clients can search the directory, modify and manipulate records in the directory. OpenLDAP is efficient in both reading and modifying data in the directory.

OpenLDAP servers are most commonly used to provide centralized management of user accounts. For example, you can create an account in OpenLDAP and if it is connected with a mail server, FTP server, Samba server, or any other server, you can use the account to log in to these servers without creating a new account for each server.

Step 1: Install OpenLDAP Server on Ubuntu 22.04/20.04

Run the following command to install OpenLDAP server and the client command-line utilities from Ubuntu 22.04/20.04 package repository. slapd stands for the Stand-Alone LDAP Daemon.

sudo apt install slapd ldap-utils

You will be asked to set a password for the admin entry in the LDAP directory.

Once it’s done, slapd will be automatically started. You can check out its status with:

systemctl status slapd

Be default, it runs as the openldap user as is defined in /etc/default/slapd file.

Step 2: Basic Post-Installation Configuration

The installation process installs the package without any configurations. To have our OpenLDAP server running properly, we need to do some basic post-installation configuration. Run the following command to start the configuration wizard.

sudo dpkg-reconfigure slapd

You will need to answer a series of questions. Answer these questions as follows:

  • Omit LDAP server configuration: NO.

openldap ubuntu

  • DNS domain name: Enter your domain name like linuxbabe.com. You will need to set a correct A record for your domain name. You can also use a subdomain like directory.linuxbabe.com. This information is used to create the base DN (distinguished name) of the LDAP directory.

install openldap ubuntu

  • Organization name: Enter your organization name like LinuxBabe.

ldap server configuration in ubuntu 16.04 step by step

  • Administrator password: Enter the same password set during installation.

openldap server ubuntu 16.04

  • Database backend to use: MDB.
  • BDB (Berkeley Database) is slow and cumbersome. It is deprecated and support will be dropped in future OpenLDAP releases.
  • HDB (Hierarchical Database) is a variant of the BDB backend and will also be deprecated.
  • MDB reads are 5-20x faster than BDB. Writes are 2-5x faster. And it consumes 1/4 as much RAM as BDB. So we choose MDB as the database backend.

openldap mdb

  • Do you want the database to be removed when slapd is purged? No.

install openldap server on ubuntu 16.04 LTS

  • Move old database? Yes.

openldap server configuration

  • Allow LDAPv2 protocol? No. The latest version of LDAP is LDAP v.3, developed in 1997. LDAPv2 is obsolete.

install ldap ubuntu

Now the process will reconfigure the OpenLDAP service according to your answers. Your OpenLDAP server is now ready to use.

openldap ubuntu 16.04 configuration

Step 3: Configuring the LDAP Clients

/etc/ldap/ldap.conf is the configuration file for all OpenLDAP clients. Open this file.

sudo nano /etc/ldap/ldap.conf

We need to specify two parameters: the base DN and the URI of our OpenLDAP server. Copy and paste the following text at the end of the file. Replace your-domain and com as appropriate.

BASE     dc=your-domain,dc=com
URI      ldap://localhost

The first line defines the base DN. It tells the client programs where to start their search in the directory. If you used a subdomain when configuring OpenLDAP server, then you need to add the subdomain here like so

BASE      dc=subdomain,dc=your-domain,dc=com

The second line defines the URI of our OpenLDAP server. Since the LDAP server and client are on the same machine, we should set the URI to ldap://localhost.

Step 4: Testing OpenLDAP Server

Now that OpenLDAP server is running and client configuration is done, run the following command to make test connections to the server.

ldapsearch -x

Output:

# extended LDIF
#
# LDAPv3
# base <dc=linuxbabe,dc=com> (default) with scope subtree
# filter: (objectclass=*)
# requesting: ALL
#

# linuxbabe.com
dn: dc=linuxbabe,dc=com
objectClass: top
objectClass: dcObject
objectClass: organization
o: LinuxBabe

# admin, linuxbabe.com
dn: cn=admin,dc=linuxbabe,dc=com
objectClass: simpleSecurityObject
objectClass: organizationalRole
cn: admin
description: LDAP administrator

# search result
search: 2
result: 0 Success

# numResponses: 3
# numEntries: 2

Result: 0 Success indicates that OpenLDAP server is working. If you get the following line, then it’s not working.

result: 32 No such object

Step 5: Installing phpLDAPadmin

phpLDAPadmin is a web-based program for managing OpenLDAP server. The command-line utilities can be used to manage our OpenLDAP server, but for those who want an easy-to-use interface, you can install phpLDAPadmin.

Run the following command to install phpLDAPadmin from Ubuntu package repository.

sudo apt install phpldapadmin

If your Ubuntu server doesn’t have a web server running, then the above command will install the Apache web server as a dependency. If there’s already a web server such as Nginx, then Apache won’t be installed.

If you use Apache

The installation will put a configuration file phpldapadmin.conf under /etc/apache2/conf-enabled/ directory. Once the installation is done, you can access phpLDAPadmin web interface at

your-server-ip/phpldapadmin

or

your-domain.com/phpldapadmin

To enable HTTPS, you can obtain and install a free TLS certificate issued from Let’s Encrypt.

If you use Nginx

Nginx users will need to manually create a server block file for phpLDAPadmin.

sudo nano /etc/nginx/conf.d/phpldapadmin.conf

Copy the following text and paste it to the file. Replace ldap.your-domain.com with your preferred domain name.

server {
        listen 80;
        server_name ldap.your-domain.com;

        root /usr/share/phpldapadmin/htdocs;
        index index.php index.html index.htm;

        error_log /var/log/nginx/phpldapadmin.error;
        access_log /var/log/nginx/phpldapadmin.access;

        location ~ \.php$ {
            fastcgi_pass unix:/run/php/php7.4-fpm.sock;
            fastcgi_index index.php;
            fastcgi_param SCRIPT_FILENAME  $document_root/$fastcgi_script_name;
            include fastcgi_params;
        }
}

Save and close the file. Then text Nginx configurations.

sudo nginx -t

If the test is successful, reload Nginx for the changes to take effect.

sudo systemctl reload nginx

Now you can access phpLDAPadmin web interface at ldap.your-domain.com. To enable HTTPS, you can obtain and install a free TLS certificate issued from Let’s Encrypt.

Step 6: Configuring phpLDAPadmin

We need to do some configurations just like we did with the command-line client. The phpLDAPadmin configuration file is at /etc/phpldapadmin/config.php .

sudo nano /etc/phpldapadmin/config.php

Since OpenLDAP and phpLDAPadmin are running on the same machine, so we will configure phpLDAPadmin to connect to localhost on the default LDAP port 389 without SSL/TLS encryption.

Line 293 specifies that phpLDAPadmin will connect to localhost.

$servers->setValue('server','host','127.0.0.1');

Line 296 is commented out by default, which means the standard port 389 will be used.

// $servers->setValue('server','port',389);

Line 335 is commented out by default, which means TLS encryption is not enabled.

// $servers->setValue('server','tls',false);

Then go to line 300.

$servers->setValue('server','base',array('dc=example,dc=com'));

Change it to:

$servers->setValue('server','base',array());

This will let phpLDAPadmin automatically detect the base DN of your OpenLDAP server. Next, you can disable anonymous login. Go to line 453.

// $servers->setValue('login','anon_bind',true);

By default, anonymous login is enabled. To disable it, you need to remove the comment character (the two slashes) and change true to false.

$servers->setValue('login','anon_bind',false);

You will probably want to disable template warnings because these warnings are annoying and unimportant. Go to line 161.

// $config->custom->appearance['hide_template_warning'] = false;

Remove the comment character and change false to true.

$config->custom->appearance['hide_template_warning'] = true;

Save and close the file.

Step 7: Accessing phpLDAPadmin Web Interface

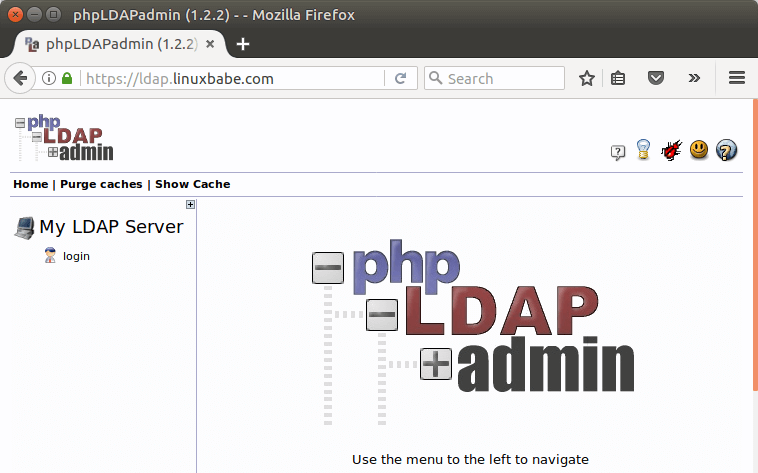

We can now test out the phpLDAPadmin tool with our web browser. When phpLDAPadmin first loads, it looks something like this.

phpldapadmin

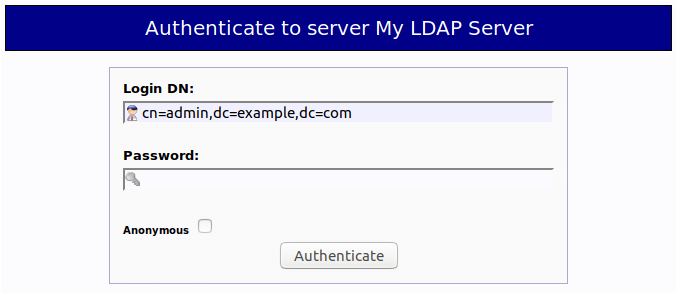

To log into our OpenLDAP server, click on the login link. You will see the login dialog box. The default login DN is cn=admin,dc=example,dc=com. You may need to change dc=example. In my case, I need to change the login DN to cn=admin,dc=linuxbabe,dc=com.

openldap web interface

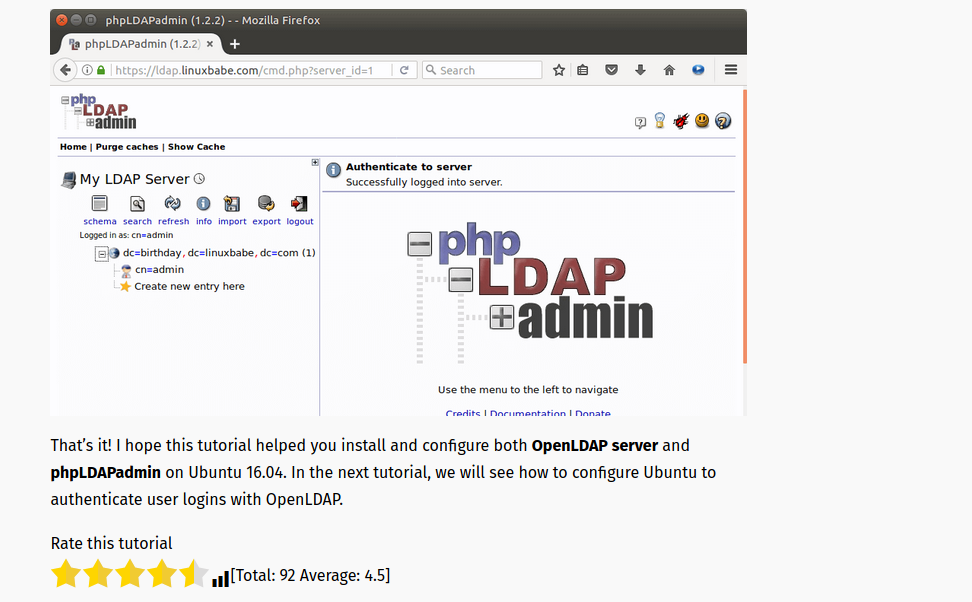

The password is the admin password you set during the configuration of OpenLDAP server. Once you log into phpLDAPadmin, you can manage this directory server.

phpldapadmin configuration

That’s it! I hope this tutorial helped you install and configure both OpenLDAP server and phpLDAPadmin on Ubuntu 22.04/20.04. In the next tutorial, we will see how to configure Ubuntu to authenticate user logins with OpenLDAP.

Rate this tutorial
[Total: 104 Average: 4.6]

22 Responses to “How to Set Up OpenLDAP Server on Ubuntu 22.04/20.04

  • tripapreza
    6 years ago

    Thank you very much for this tutorial. It helped me a lot!

  • Josep SP
    6 years ago

    Thanks for the tuto! But I have an error when I put the ldapsearch -x command. How can I fix the result: 32 No such object error?

    • Josep SP
      6 years ago

      Ok, I fix it. I dont read the part of “Copy and paste the following text at the end of the file” and I change the default fields without quit the #.

      Thanks!

  • Rémi Girard
    6 years ago

    The perfect step-by-step OpenLdap guide do not ex….

  • Metanol
    6 years ago

    Best tuto so far, thanks a lot ! 😀

  • Ajmal Abbas
    6 years ago

    Thank a lotttt 🙂
    Best one

  • sandeep
    6 years ago

    how to solve
    ldapsearch -x
    # extended LDIF
    #
    # LDAPv3
    # base (default) with scope subtree
    # filter: (objectclass=*)
    # requesting: ALL
    #

    # search result
    search: 2
    result: 32 No such object

    this problem

  • Anonymous
    6 years ago

    Thank you very much. Just installed this on my Linux server and it’s working very well. Next is to make users to authenticate with the LDAP server. Very well written tutorial. Keep up the good work!

  • THank you I was able to install it properly with no errors.

    Off to the next tutorial

  • Thanks a lot for your accurate information.. it helped me a lot

  • Ravindra
    4 years ago

    Very accurate and Excellent way of explaining the ldap configuration. Kudos to you

  • Subramaniyam S
    4 years ago

    Unable to create users

    Template Value Error
    This template uses a selection list for attribute [gidNumber], however the selection list is empty.
    You may need to create some dependancy entries in your LDAP server so that this attribute renders with values. Alternatively, you may be able to define the appropriate selection values in the template file.

    • Subramaniyam S
      4 years ago

      Its working after creating a group
      Thanks for this nice tutorial 🙂

  • Bhupesh
    4 years ago

    Hi, I am getting following error : Error
    Unrecognized error number: 8192: Function create_function() is deprecated” while I am trying to create an entry?

  • IMRON HS
    3 years ago

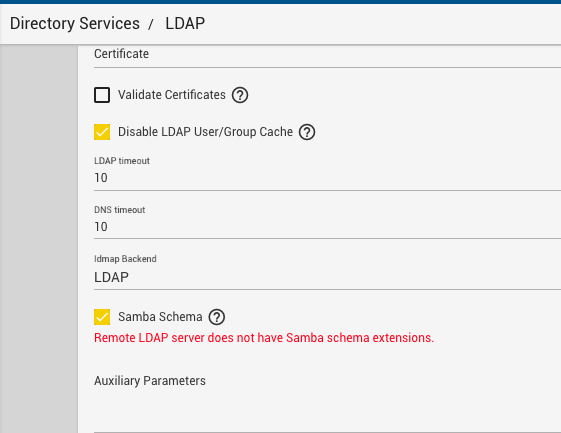

    Hi Xiao Guo-An, how to integrate LDAP with Samba attributes ? Becouse try configure LDAP server with my FreeNAS server. And have notification error like my attach file. Thank you
