Part 2: Install Dovecot IMAP Server on Rocky Linux 9/Alma Linux 9 & Enable TLS Encryption

This is part 2 of building your own email server from scratch on Rocky Linux 9/Alma Linux 9 tutorial series. In part 1, we showed you how to set up a basic Postfix SMTP server. In this tutorial, we are going to configure our email server so that we can receive and send emails using a desktop email client like Mozilla Thunderbird or Microsoft Outlook.

  • To send emails using a desktop email client, we need to enable the submission service in Postfix.
  • To receive emails using a desktop email client, we can install the Dovecot open-source IMAP server on Rocky Linux 9/Alma Linux 9.
  • And to encrypt our communications, we need a TLS certificate.

Open Ports in Firewall

Run the following command to open email-related ports in the firewall.

sudo firewall-cmd --permanent --add-service={http,https,smtp-submission,smtps,imap,imaps}

If you use POP3 to fetch emails (I personally don’t), then also add the pop3 and pop3s service.

sudo firewall-cmd --permanent --add-service={pop3,pop3s}

Reload firewalld for the change to take effect.

sudo systemctl reload firewalld

Securing Email Server Traffic with TLS Certificate

When we configure a desktop email client, enabling encryption is always a good idea. We can easily obtain a free TLS certificate from Let’s Encrypt. Issue the following commands to install Let’s Encrypt client (certbot) from the EPEL repository.

Rocky Linux 9/Alma Linux 9

sudo dnf install epel-release -y

sudo dnf install certbot -y

RHEL 9

sudo dnf install https://dl.fedoraproject.org/pub/epel/epel-release-latest-9.noarch.rpm

sudo dnf install certbot -y

If you don’t have a web server running yet, I recommend you install one (Apache or Nginx), because it’s easier to obtain and install TLS certificate with a web server than using other methods. And in a later tutorial, I will show you how to set up webmail, which requires running a web server.

Note that your Rocky Linux 9/Alma Linux 9 server might ship with Apache web server by default.

Apache

If you prefer Apache, run the following command to install it.

sudo dnf install httpd -y

Start Apache and enable auto-start at boot time.

sudo systemctl start httpd

sudo systemctl enable httpd

Install the Certbot Apache plugin.

sudo dnf install python3-certbot-apache -y

Nginx

If you prefer Nginx, run the following command to install it.

sudo dnf install nginx -y

Start Nginx and enable auto-start at boot time.

sudo systemctl start nginx

sudo systemctl enable nginx

Install the Certbot Nginx plugin.

sudo dnf install python3-certbot-nginx -y

Obtaining TLS Certificate with Apache Web Server

You need to have an Apache virtual host for mail.your-domain.com before obtaining Let’s Encrypt TLS certificate. Create the virtual host file:

sudo nano /etc/httpd/conf.d/mail.your-domain.com.conf

Then paste the following text into the file.

<VirtualHost *:80>
        ServerName mail.your-domain.com

        DocumentRoot /var/www/html/
</VirtualHost>

Save and close the file. Reload Apache for the changes to take effect.

sudo systemctl reload httpd

Once virtual host is created and enabled, run the following command to obtain Let’s Encrypt TLS certificate.

sudo certbot certonly -a apache --agree-tos --no-eff-email --staple-ocsp --email [email protected] -d mail.your-domain.com

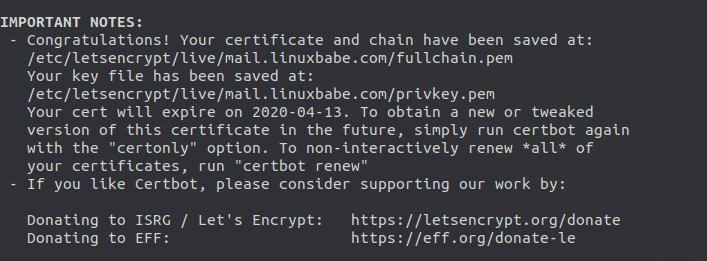

After a while, you should see the following lines which means the certificate is successfully obtained. You can also see the directory under which your cert is stored.

centos postfix dovecot tls certbot

Obtaining TLS Certificate with Nginx Web Server

You need to have an Nginx virtual host for mail.your-domain.com before obtaining Let’s Encrypt TLS certificate. Create the virtual host file:

sudo nano /etc/nginx/conf.d/mail.your-domain.com.conf

Next, paste the following text into the file.

server {
      listen 80;
      listen [::]:80;
      server_name mail.your-domain.com;

      root /usr/share/nginx/html/;

      location ~ /.well-known/acme-challenge {
         allow all;
      }
}

Save and close the file. Reload Nginx for the changes to take effect.

sudo systemctl reload nginx

Once virtual host is created and enabled, run the following command to obtain Let’s Encrypt certificate with Nginx plugin.

sudo certbot certonly -a nginx --agree-tos --no-eff-email --staple-ocsp --email [email protected] -d mail.your-domain.com

After a while, you should see the following which means the certificate is successfully obtained. You can also see the directory under which your cert is stored.

centos postfix dovecot tls certbot

Enabling Submission Service in Postfix

To send emails from a desktop email client, we need to enable the submission service of Postfix so that the email client can submit emails to Postfix SMTP server. Edit the master.cf file.

sudo nano /etc/postfix/master.cf

In submission section, uncomment or add the following lines. Please allow at least one whitespace (tab or spacebar) before each -o. In postfix configurations, a preceding whitespace character means that this line is continuation of the previous line. (By default the submission section is commented out. You can copy the following lines and paste them into the file, so you don’t have to manually uncomment or add new text.)

submission     inet     n    -    y    -    -    smtpd
  -o syslog_name=postfix/submission
  -o smtpd_tls_security_level=encrypt
  -o smtpd_tls_wrappermode=no
  -o smtpd_sasl_auth_enable=yes
  -o smtpd_relay_restrictions=permit_sasl_authenticated,reject
  -o smtpd_recipient_restrictions=permit_mynetworks,permit_sasl_authenticated,reject
  -o smtpd_sasl_type=dovecot
  -o smtpd_sasl_path=private/auth

The above configuration enables the submission daemon of Postfix and requires TLS encryption. So later on our desktop email client can connect to the submission daemon in TLS encryption. The submission daemon listens on TCP port 587. STARTTLS is used to encrypt communications between email client and the submission daemon.

Microsoft Outlook only supports submission over port 465. If you are going to use Microsoft outlook mail client, then you also need to enable submission service on port 465 by adding the following lines in the file.

smtps     inet  n       -       y       -       -       smtpd
  -o syslog_name=postfix/smtps
  -o smtpd_tls_wrappermode=yes
  -o smtpd_sasl_auth_enable=yes
  -o smtpd_relay_restrictions=permit_sasl_authenticated,reject
  -o smtpd_recipient_restrictions=permit_mynetworks,permit_sasl_authenticated,reject
  -o smtpd_sasl_type=dovecot
  -o smtpd_sasl_path=private/auth

Enable-Submission-Service-in-Postfix-centos8

Save and close the file.

Hint: The SMTP protocol is used when an email client submits emails to an SMTP server.

Next, we need to run the following two commands to specify the location of TLS certificate and private key in Postfix configuration file. Your Let’s Encrypt certificate and private key are stored under /etc/letsencrypt/live/mail.your-domain.com/ directory.

sudo postconf "smtpd_tls_cert_file = /etc/letsencrypt/live/mail.your-domain.com/fullchain.pem"

sudo postconf "smtpd_tls_key_file = /etc/letsencrypt/live/mail.your-domain.com/privkey.pem"

If you want to log TLS connections in the mail log (/var/log/maillog), then run the following two commands.

sudo postconf "smtpd_tls_loglevel = 1"

sudo postconf "smtp_tls_loglevel = 1"

To disable insecure SSL/TLS versions, open the Postfix main configuration file.

sudo nano /etc/postfix/main.cf

Add the following lines at the bottom of the file. (In Nano text editor, you can quickly go to the bottom of a file by pressing Ctrl+W, then Ctrl+V.)

#Force TLSv1.3 or TLSv1.2
smtpd_tls_mandatory_protocols = !SSLv2, !SSLv3, !TLSv1, !TLSv1.1
smtpd_tls_protocols = !SSLv2, !SSLv3, !TLSv1, !TLSv1.1
smtp_tls_mandatory_protocols = !SSLv2, !SSLv3, !TLSv1, !TLSv1.1
smtp_tls_protocols = !SSLv2, !SSLv3, !TLSv1, !TLSv1.1

Save and close the file. Then reload Postfix for the changes to take effect.

sudo systemctl restart postfix

If you run the following command, you will see Postfix is now listening on port 587 and 465.

sudo ss -lnpt | grep master

enable-smtps-service-postfix-centos8

Installing Dovecot IMAP Server

Enter the following command to install Dovecot on Rocky Linux 9/Alma Linux 9 server.

sudo dnf install dovecot -y

Check Dovecot version:

dovecot --version

Sample output:

2.3.16 (7e2e900c1a)

Start Dovecot and enable auto-start at boot time.

sudo systemctl start dovecot

sudo systemctl enable dovecot

Configuring Dovecot

First, edit main config file.

sudo nano /etc/dovecot/dovecot.conf

Find the following line.

#protocols = imap pop3 lmtp submission

Change this line to the following to enable IMAP protocol and LMTP protocol.

protocols = imap lmtp

If you want to use POP3 to fetch emails, then also add the POP3 protocol.

protocols = imap pop3 lmtp

Note that you should not enable the submission protocol in Dovecot, because we have already enabled submission service in Postfix.

Save and close the file.

Configuring Mailbox Location

mbox is the traditional and default format for storing emails. Each user’s emails are stored in a single file /var/mail/username. You can run the following command to find the mail spool directory.

postconf mail_spool_directory

Sample output:

mail_spool_directory = /var/mail

However, nowadays it’s almost always you want to use the Maildir format to store email messages. The config file for mailbox location is /etc/dovecot/conf.d/10-mail.conf.

sudo nano /etc/dovecot/conf.d/10-mail.conf

Add the following line to use the Maildir format. Email messages will be stored under the Maildir directory under each user’s home directory.

mail_location = maildir:~/Maildir

We also need to add the following line in the file.

mail_privileged_group = mail

Save and close the file. Then add dovecot to the mail group so that Dovecot can read the INBOX.

sudo gpasswd -a dovecot mail

Using Dovecot to Deliver Email to Message Store

Although we configured Dovecot to store emails in Maildir format, by default, Postfix uses its built-in local delivery agent (LDA) to move inbound emails to the message store (inbox, sent, trash, Junk, etc), and it will be saved in mbox format.

We need to configure Postfix to pass incoming emails to Dovecot, via the LMTP protocol, which is a simplified version of SMTP, so incoming emails will saved in Maildir format by Dovecot. LMTP allows for a highly scalable and reliable mail system. It also allows us to use the sieve plugin to filter inbound messages to different folders.

Edit the Dovecot main configuration file.

sudo nano /etc/dovecot/dovecot.conf

Add lmtp to the supported protocols.

protocols = imap lmtp

Save and close the file. Then edit the Dovecot 10-master.conf file.

sudo nano /etc/dovecot/conf.d/10-master.conf

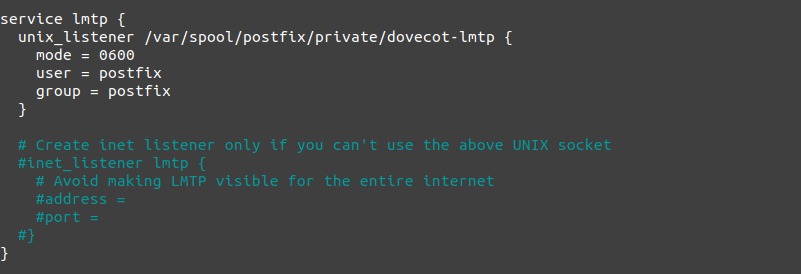

Change the lmtp service definition to the following.

service lmtp {
 unix_listener /var/spool/postfix/private/dovecot-lmtp {
   mode = 0600
   user = postfix
   group = postfix
  }
}

dovecot-lmtp-centos

Save and close the file. Next, edit the Postfix main configuration file.

sudo nano /etc/postfix/main.cf

Add the following lines at the end of the file. The first line tells Postfix to deliver emails to local message store via the dovecot LMTP server. The second line disables SMTPUTF8 in Postfix, because Dovecot-LMTP doesn’t support this email extension.

mailbox_transport = lmtp:unix:private/dovecot-lmtp
smtputf8_enable = no

Save and close the file.

Configuring Authentication Mechanism

Edit the authentication config file.

sudo nano /etc/dovecot/conf.d/10-auth.conf

Find the following line and uncomment it by removing the # character at the beginning.

#disable_plaintext_auth = yes

This will disable plaintext authentication when there’s no SSL/TLS encryption. Then find the following line,

#auth_username_format = %Lu

Uncomment it and change its value to %n.

auth_username_format = %n

By default, when Dovecot tries to find or deliver emails for a user, it uses the full email address. Since in this part, we only set up canonical mailbox users (using OS users as mailbox users), Dovecot can’t find the mailbox user in full domain format ([email protected]), so we need to set auth_username_format = %n to drop the domain part, then Dovecot should be able to find the mailbox user. This also allows us to use the full email address ([email protected]) to log in.

Next, find the following line.

auth_mechanisms = plain

This line only enables the PLAIN authentication mechanism. LOGIN is another authentication mechanism you probably want to add to support older email clients.

auth_mechanisms = plain login

Save and close the file.

Configuring SSL/TLS Encryption

Next, edit SSL/TLS config file.

sudo nano /etc/dovecot/conf.d/10-ssl.conf

You can find the following line, which requires email clients to communicate with Dovecot with TLS encryption.

ssl = required

Then find the following two lines.

ssl_cert = </etc/pki/dovecot/certs/dovecot.pem
ssl_key = </etc/pki/dovecot/private/dovecot.pem

We need to replace values with the location of your SSL/TLS cert and private key. Don’t leave out the < character. It’s necessary.

ssl_cert = </etc/letsencrypt/live/mail.your-domain.com/fullchain.pem
ssl_key = </etc/letsencrypt/live/mail.your-domain.com/privkey.pem

Next, find the following line and uncomment it. (Remove the beginning # character.)

#ssl_dh = </etc/dovecot/dh.pem

Find the following line.

#ssl_min_protocol = TLSv1.2

This specifies the minimum TLS versions used by Dovecot. TLSv1.0 and TLSv1.1 are insecure. so uncomment this line, which will force Dovecot to use TLSv1.2 or TLSv1.3.

ssl_min_protocol = TLSv1.2

Then find the following line.

#ssl_prefer_server_ciphers = no

It’s a good practice to prefer the server’s order of ciphers over client’s, so uncomment this line and change the value to yes.

ssl_prefer_server_ciphers = yes

Save and close the file. Now we need to generate the Diffie-Hellman parameter with:

sudo openssl dhparam -out /etc/dovecot/dh.pem 4096

If your mail server has a single CPU core, then this is going to take a long time (about 10 minutes). If you can’t wait, you can generate the DH parameters on your local Linux computer, then upload the file to the /etc/dovecot/ directory on the mail server.

SASL Authentication Between Postfix and Dovecot

Edit the following file.

sudo nano /etc/dovecot/conf.d/10-master.conf

Change service auth section to the following so that Postfix can find the Dovecot authentication server. Please be careful about the syntax. Every opening bracket should be terminated by a closing bracket.

service auth {
    unix_listener /var/spool/postfix/private/auth {
      mode = 0600
      user = postfix
      group = postfix
    }
}

Postfix-SMTP-Auth-centos8

Save and close the file.

Auto-create Sent and Trash Folder

Edit the below config file.

sudo nano /etc/dovecot/conf.d/15-mailboxes.conf

To auto-create a folder, simply add the following line in the mailbox section.

auto = create

Example:

 mailbox Trash {
    auto = create
    special_use = \Trash
 }

Some common folders you will want to create includes: Drafts, Junk, Trash and Sent. The Sent folder will be created under the user’s home directory when the user send the first email. The Trash folder will be created when the user deletes an email for the first time, etc. After you save and close all above config files, restart Postfix and Dovecot.

sudo systemctl restart postfix dovecot

Dovecot will be listening on port 143 (IMAP) and 993 (IMAPS), as can be seen with:

sudo ss -lnpt | grep dovecot

centos 8 dovecot imap server

If there’s a configuration error, dovecot will fail to restart, so it’s a good idea to check the status of Dovecot.

systemctl status dovecot

Configure Desktop Email Client

Fire up your desktop email client such as Mozilla Thunderbird. Go to Edit -> Account Settings -> Account Actions -> Add Mail Account to add a mail account. If Thunderbird found your mail server configuration like below, simply click Done button and you will be able to read and send emails.

mozilla thunderbird set up an existing email account

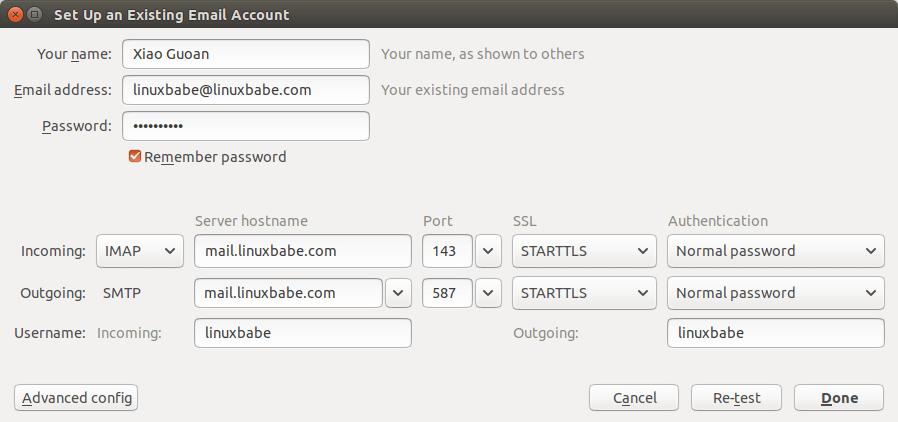

If Thunderbird didn’t found your mail server configuration, then click Manual config button to enter your mail server details.

  • In the incoming server section, select IMAP protocol, enter mail.your-domain.com as the server name, choose port 143 and STARTTLS. Choose normal password as the authentication method.
  • In the outgoing section, select SMTP protocol, enter mail.your-domain.com as the server name, choose port 587 and STARTTLS. Choose normal password as the authentication method.

centos 8 postfix dovecot

Hint: You can also use port 993 with SSL/TLS encryption for IMAP, and use port 465 with SSL/TLS encryption for SMTP. You should not use port 25 as the SMTP port to submit outgoing emails.

You should now be able to connect to your own email server and also send and receive emails with your desktop email client!

We use local Unix accounts as email addresses, as we did in part 1. For example, if you have a user called user1 on your CentOS/RHEL server, then you have an email address: [email protected], and the password for the email address is the same password for the user1 user. To create a local Unix account, run

sudo adduser user1

Then set a password for this user.

sudo passwd user1

Note: Dovecot doesn’t allow you to login with the root account. You need to create separate user accounts.

You can list all available mailbox users with:

sudo doveadm user '*'

It’s recommended to restart Dovecot after adding users, so Dovecot can recognize new mailbox users.

sudo systemctl restart dovecot

Troubleshooting Tips

As a rule of thumb, you should always check the mail log (/var/log/maillog) on your mail server when an error happens. The following is a list of specific errors.

Can’t login from Mail Clients

If you can’t log into your mail server from a desktop mail client, scan your mail server to find if the ports (TCP 587, 465, 143, and 993) are open. Note that you should run the following command from another Linux computer or server. If you run it on your mail server, then the ports will always appear to be open.

sudo nmap mail.your-domain.com

And check if Dovecot is running.

systemctl status dovecot

You can also check the mail log (/var/log/maillog), which may give you some clues. If Dovecot fails to start, the error might not be logged to the /var/log/maillog file, you can run the following command to see what’s wrong.

sudo journalctl -eu dovecot

For example, some folks may have the following error in the journal.

doveconf: Fatal: Error in configuration file /etc/dovecot/conf.d/10-master.conf line 78: Unknown setting

Most of the time, it’s a simple syntax error, like a missing curly bracket. Open the configuration file, go to the specified line and fix the error.

Cloudflare DNS

As I said in part 1, if you use Cloudflare DNS service, you should not enable the CDN (proxy) feature when creating DNS A record and AAAA record for the hostname of your mail server. Cloudflare doesn’t support SMTP or IMAP proxy.

Relay Access Denied

If you see the “relay access denied” error when trying to send emails from a mail client, it’s most likely that you use port 25 as the SMTP port in your mail client. As I said a while ago, you should use port 587 or 465 as the SMTP port in mail clients (Mozilla Thunberbird, Microsoft Outlook, etc) to submit outgoing emails. Port 25 should be used for SMTP server to SMTP server communications.

postfix dovecot relay access denied

If you see the following “relay access denied” error in the /var/log/maillog file when trying to send emails from other mail services like Gmail to your own mail server, it’s likely that yourdomain.com is not in the list of $mydestination parameter.

NOQUEUE: reject: RCPT from mail-il1-f180.google.com[209.85.166.180]: 454 4.7.1 <[email protected]>: Relay access denied; from=<[email protected]> to=<[email protected]> proto=ESMTP helo=<mail-il1-f180.google.com>

You can display the current value of $mydestination with:

postconf mydestination

Some folks might not have the main domain name in the list like so:

mydestination = $myhostname, localhost.$mydomain, localhost

Then run the following command to add the main domain name to the list.

sudo postconf -e "mydestination = yourdomain.com, \$myhostname, localhost.\$mydomain, localhost"

Reload Postfix for the changes to take effect.

sudo systemctl reload postfix

User Doesn’t Exist

If you see the following error message in the mail log (/var/log/maillog), it’s likely that you forgot to set auth_username_format = %n In /etc/dovecot/conf.d/10-auth.conf file.

mail postfix/lmtp[2256]: 68E00FC1A5: to=, relay=mail.example.com[private/dovecot-lmtp], delay=509, delays=509/0.03/0.03/0.02, dsn=5.1.1, status=bounced (host mail.example.com[private/dovecot-lmtp] said: 550 5.1.1  User doesn't exist: [email protected] (in reply to RCPT TO command))

iOS Mail App

If you use the iOS Mail app to log into your mail server and encounter the following error.

ios the mail server is not responding

You can try to fix it by enforcing SSL encryption, for both SMTP and IMAP.

ios mail enforce SSL encryption

Fun fact: It seems the iOS Mail app has difficulty in supporting STARTTLS on IMAP port 143, but it supports STARTTLS on the submission port 587.

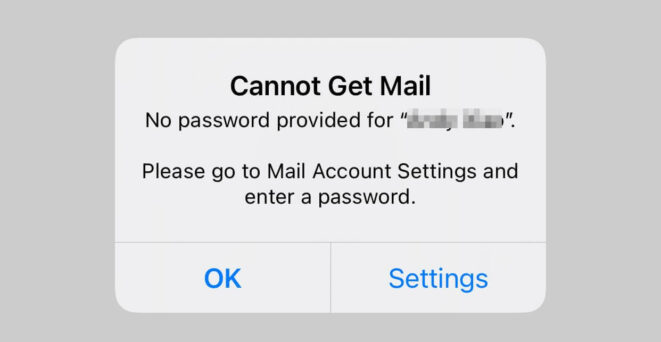

If you encounter the “No password provided” error in the iOS Mail app, it’s likely that you have a typo when entering the username in the Mail account settings, or you didn’t enable SSL in the Mail account settings. ios mail no password provided

Unable to Receive Email From Gmail, Hotmail, Yahoo Mail, etc

If you can’t receive emails from Gmail, Hotmail, Yahoo Mail, etc, here are the possible causes:

  1. Your MX record is wrong, or not propagated to the Internet yet.
  2. Your mail server hostname doesn’t have DNS A record, or not propagated to the Internet yet.
  3. Your firewall doesn’t allow incoming connection to port 25. Maybe your mail server is behind a NAT?
  4. Postfix isn’t listening on the public IP address.
  5. Check the mail log (/var/log/mail.log) to find out if there are other errors in your Postfix and Dovecot configuration.

You can use the Network Tools Email Checker to test if your SMTP server is reachable from the Internet. Just enter your domain email address and click the Go button. As you can see from the screenshot below, it successfully found my domain’s MX record and my SMTP server is reachable from the Internet.

email checker

If your SMTP servers isn’t reachable from the Internet, then you have a problem in the first 4 items. If your SMTP server is reachable from the Internet, but you still can’t receive emails, check the mail log (/var/log/mail.log) to find out if there is any errors in your Postfix and Dovecot configuration.

Auto-Renew TLS Certificate

You can create Cron job to automatically renew TLS certificate. Simply open root user’s crontab file.

sudo crontab -e

If you use Apache web server, add the following line at the bottom of the file.

@daily certbot renew --quiet && systemctl reload postfix dovecot httpd

If you are using Nginx web server, then add the following line.

@daily certbot renew --quiet && systemctl reload postfix dovecot nginx

Reloading Postfix, Dovecot and the web server is necessary to make these programs pick up the new certificate and private key.

Dovecot Automatic Restart

If for any reason your Dovecot process is killed, you need to run the following command to restart it.

sudo systemctl restart dovecot

Instead of manually typing this command, we can make Dovecot automatically restart by editing the dovecot.service systemd service unit. To override the default systemd service configuration, we create a separate directory.

sudo mkdir -p /etc/systemd/system/dovecot.service.d/

Then create a file under this directory.

sudo nano /etc/systemd/system/dovecot.service.d/custom.conf

Add the following lines in the file, which will make Dovecot automatically restart 5 seconds after a failure is detected.

[Service]
Restart=always
RestartSec=5s

Save and close the file. Then reload systemd.

sudo systemctl daemon-reload

To check if this would work, kill Dovecot with:

sudo pkill dovecot

Then check Dovecot status. You will find Dovecot automatically restarted.

systemctl status dovecot

Next Step

I hope this article helped you set up Postfix and Dovecot on Rocky Linux 9/Alma Linux 9 server. In part 3, I will show you how to create virtual mailboxes on Rocky Linux 9/Alma Linux 9 with PostfixAdmin.

Rate this tutorial
[Total: 4 Average: 5]

2 Responses to “Part 2: Install Dovecot IMAP Server on Rocky Linux 9/Alma Linux 9 & Enable TLS Encryption

  • Mark Kolesar
    11 months ago

    Please fix this:

    Part 2: Install Dovecot IMAP Server on Rocky Linux 9/Alma Linux 9 & Enable TLS Encryption


    file: /etc/postfix/master.cf
    line: submission inet n – y – – smtpd
    should be: submission inet n – n – – smtpd

    Because setting it chroot doesn’t work for me and I suspect the same for others.

  • Remember to add ‘permit_sasl_authenticated’ in smtpd_client_restrictions and smtpd_helo_restrictions to be able to connect to your server from Outlook or other client as follow :

    # Reject unknown clients that forward lookup and reverse lookup of their hostnames on DNS do not match
	smtpd_client_restrictions = permit_mynetworks, permit_sasl_authenticated, reject_unknown_client_hostname, permit

    # Rejects senders that domain name set in FROM are not registered in DNS or not registered with FQDN
	smtpd_sender_restrictions = permit_mynetworks, reject_unknown_sender_domain, reject_non_fqdn_sender

    # Reject hosts that domain name set in FROM are not registered in DNS or not registered with FQDN when your SMTP server receives HELO command
	smtpd_helo_restrictions = permit_mynetworks, permit_sasl_authenticated, reject_unknown_hostname, reject_non_fqdn_hostname, reject_invalid_hostname, permit


Leave a Comment

  • Comments with links are moderated by admin before published.
  • Your email address will not be published.
  • Use <pre> ... </pre> HTML tag to quote the output from your terminal/console.
  • Please use the community (https://community.linuxbabe.com) for questions unrelated to this article.
  • I don't have time to answer every question. Making a donation would incentivize me to spend more time answering questions.

The maximum upload file size: 2 MB. You can upload: image. Links to YouTube, Facebook, Twitter and other services inserted in the comment text will be automatically embedded. Drop file here
