Run OpenConnect VPN Server & Apache/Nginx on the Same Box with HAProxy

This tutorial will be showing you how to run OpenConnect VPN server (ocserv) and Apache/Nginx on the same box with HAProxy. OpenConnect (ocserv) is an open-source implementation of the Cisco AnyConnect VPN protocol.

ocserv-apache-nginx-haproxy

Prerequisites

To follow this tutorial, it’s assumed that you have already set up an OpenConnect VPN server with Let’s Encrypt TLS server certificate. If not, please follow one of the following tutorials.

Make OpenConnect VPN server and web server use port 443 at the same time

By default, OpenConnect VPN server listens on port 443. If you already have Apache/Nginx listening on port 443, then ocserv can’t bind to port 443. You can configure ocserv to listen on another port, but it will require end-users to specify the port in client software, which you should avoid if you care about user experience. Also, TLS traffic on TCP port 443 usually enjoys higher priority in QoS (Quality of Service), so you will have better speed.

Normally a port can only be used by one process. However, we can use HAproxy (High Availability Proxy) and SNI (Server Name Indication) to make ocserv and Apache/Nginx use port 443 at the same time.

Ocserv Configuration

First, edit ocserv configuration file.

sudo nano /etc/ocserv/ocserv.conf

Uncomment the following line. This will allow ocserv to obtain the client IP address instead of HAproxy IP address.

listen-proxy-proto = true

Then find the following line.

#listen-host = [IP|HOSTNAME]

Change it to

listen-host = 127.0.0.1

This will make ocserv listen on 127.0.0.1 because later HAproxy will need to listen on the public IP address. Save and close the file. Then restart ocserv.

sudo systemctl restart ocserv

Next, we also need to make the web server listen on localhost only, instead of listening on public IP address.

Nginx Configuration

If you use Nginx, edit the server block file.

sudo nano /etc/nginx/conf.d/example.com.conf

In the SSL server block, find the following directive.

listen 443 ssl;

Change it to

listen 127.0.0.2:443 ssl;

This time we make it listen on 127.0.0.2:443 because 127.0.0.1:443 is already taken by ocserv. Save and close the file. The Nginx main configuration file /etc/nginx/nginx.conf and the default server block /etc/nginx/sites-enabled/default might include a default virtual host listening on 443, so you might need to edit this file too.

Then restart Nginx.

sudo systemctl restart nginx

Apache Configuration

If you use Apache web server, edit your virtual host file.

Debian/Ubuntu

sudo nano /etc/apache2/sites-enabled/example.com.conf

CentOS/RHEL

sudo nano /etc/httpd/conf.d/example.com.conf

In the SSL virtual host, change

<VirtualHost *:443>

To

<VirtualHost 127.0.0.2:443>

This time we make it listen on 127.0.0.2:443 because 127.0.0.1:443 is already taken by ocserv. Save and close the file.

Then edit the /etc/apache2/ports.conf file on Debian/Ubuntu.

sudo nano /etc/apache2/ports.conf

Edit the/etc/httpd/conf.d/ssl.conf file on CentOS/RHEL.

sudo nano /etc/httpd/conf.d/ssl.conf

Change

Listen 443

To

Listen 127.0.0.2:443

Save and close the file. Restart Apache.

sudo systemctl restart apache2

or

sudo systemctl restart httpd

HAProxy Configuration

Now install HAproxy.

sudo apt install haproxy

or

sudo dnf install haproxy

Start HAProxy

sudo systemctl start haproxy

Edit configuration file.

sudo nano /etc/haproxy/haproxy.cfg

If you use Nginx, copy and paste the following lines to the end of the file. Replace 12.34.56.78 with the public IP address of your server. Replace vpn.example.com with the domain name used by ocserv and www.example.com with the domain name used by your web server.

frontend https
   bind 12.34.56.78:443
   mode tcp
   tcp-request inspect-delay 5s
   tcp-request content accept if { req_ssl_hello_type 1 }

   use_backend ocserv if { req_ssl_sni -i vpn.example.com }
   use_backend nginx if { req_ssl_sni -i www.example.com }
   use_backend nginx if { req_ssl_sni -i example.com }

   default_backend ocserv

backend ocserv
   mode tcp
   option ssl-hello-chk
   # pass requests to 127.0.0.1:443. Proxy protocol (v2) header is required by ocserv.
   server ocserv 127.0.0.1:443 send-proxy-v2

backend nginx
   mode tcp
   option ssl-hello-chk
   server nginx 127.0.0.2:443 check

If you use Apache, copy and paste the following lines to the end of the file. Replace 12.34.56.78 with the public IP address of your server. Replace vpn.example.com with the domain name used by ocserv and www.example.com with the domain name used by your web server.

frontend https
   bind 12.34.56.78:443
   mode tcp
   tcp-request inspect-delay 5s
   tcp-request content accept if { req_ssl_hello_type 1 }

   use_backend ocserv if { req_ssl_sni -i vpn.example.com }
   use_backend apache if { req_ssl_sni -i www.example.com }
   use_backend apache if { req_ssl_sni -i example.com }

   default_backend ocserv

backend ocserv
   mode tcp
   option ssl-hello-chk
   # pass requests to 127.0.0.1:443. Proxy protocol (v2) header is required by ocserv.
   server ocserv 127.0.0.1:443 send-proxy-v2

backend apache
    mode tcp
    option ssl-hello-chk
    server apache 127.0.0.2:443 check

Save and close the file. Then restart HAproxy.

sudo systemctl restart haproxy

In the configuration above, we utilized the SNI (Server Name Indication) feature in TLS to differentiate VPN traffic and normal HTTPS traffic.

  • When vpn.example.com is in the TLS Client Hello, HAProxy redirect traffic to the ocserv backend.
  • When www.example.com is in the TLS Client Hello, HAProxy redirect traffic to the apache/nginx backend.
  • If the client doesn’t specify the server name in TLS Client Hello, then HAproxy will use the default backend (ocserv).

You can test this setup with the openssl tool. First, run the following command multiple times.

echo | openssl s_client -connect your-server-IP:443 | grep subject

We didn’t specify server name in the above command, so HAproxy will always pass the request to the default backend (ocserv), and its certificate will be sent to the client. Next, run the following two commands.

echo | openssl s_client -servername www.example.com -connect your-server-IP:443 | grep subject

echo | openssl s_client -servername vpn.example.com -connect your-server-IP:443 | grep subject

Now we specified the server name in the commands, so HAproxy will pass requests according to the SNI rules we defined. Note that the Cisco AnyConnect App doesn’t support TLS SNI, so it’s better to set ocserv as the default backend in HAProxy configuration file.

When renewing Let’s Encrypt certificate for your website, it’s recommended that you use the http-01 challenge instead of tls-alpn-01 challenge, because HAproxy is listening on port 443 of the public IP address, so it can interfere with the renewal process.

sudo certbot renew --preferred-challenges http-01

Fixing HAproxy Error

If your Apache/Nginx website doesn’t show up in your browser and you see the following messages in haproxy log (/var/log/haproxy.log)

Server nginx/nginx is DOWN, reason: Socket error, info: "Connection reset by peer

backend nginx has no server available!

Layer6 invalid response

It might be your backend Nginx web server is using a TLS certificate with OCSP must staple extension. Nginx doesn’t send the OCSP staple information on the first HTTP request. To make it work, be sure to add a resolver in your Nginx virtual host configuration like below.

{
     ....
     ssl_trusted_certificate /etc/letsencrypt/live/www.example.com/chain.pem;
     ssl_stapling on;
     ssl_stapling_verify on;

    resolver 8.8.8.8;
    ....
}

Save and close the file. Then restart Nginx.

sudo systemctl restart nginx

Also, consider removing the health check for the backend server in HAproxy. So change

server nginx 127.0.0.2:443 check

To

server nginx 127.0.0.2:443

Save and close the file. Then restart HAproxy.

sudo systemctl restart haproxy

How to Enable IPv6 in ocserv with HAProxy

First, create AAAA record for vpn.example.com in your DNS zone editor, so when you finish setting up IPv6 in ocserv, the DNS record should be propagated to the Internet.

Testing IPv6 Connectivity

To establish VPN tunnel in IPv6 protocol, make sure the VPN server has a public IPv6 address. (The VPN client doesn’t have to have a public IPv6 address.) To find out, run the following command.

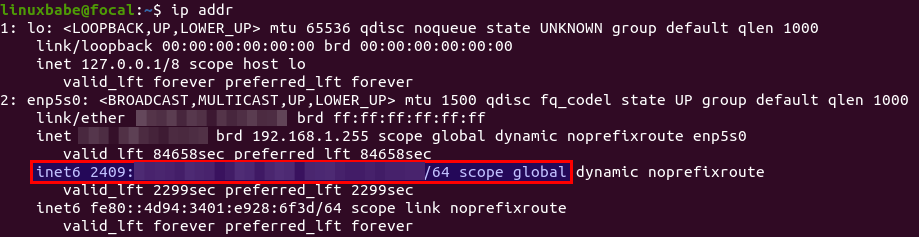

ip addr

Locate the main network interface. If you can find a inet6 .... scope global line like below, then you have a public IPv6 address. The inet6 address with scope link is a private IPv6 address.

ip addr ipv6 scope global

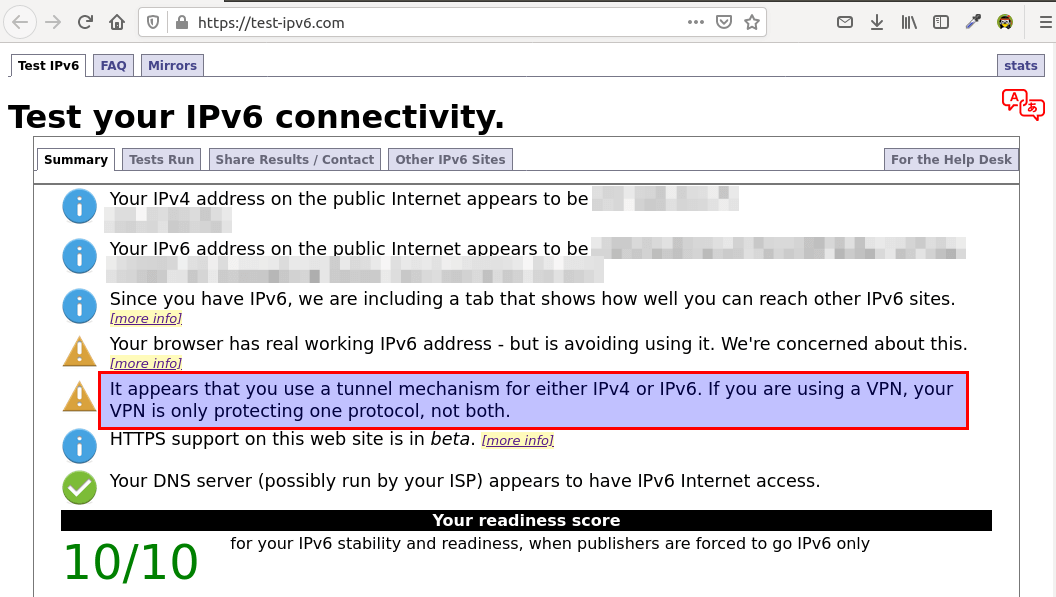

Then go to https://test-ipv6.com/ to check your IPv6 connectivity. If the VPN client has a public IPv6 address, it might tell you that your VPN is only protecting one protocol, not both. That’s because we didn’t enable IPv6 in ocserv.

your VPN is only protecting one protocol, not both

Enable IPv6 in ocserv

To enable IPv6 in ocserv, edit ocserv configuration file.

sudo nano /etc/ocserv/ocserv.conf

Find the following two lines and uncomment them, so VPN clients will be given private IPv6 addresses.

ipv6-network = fda9:4efe:7e3b:03ea::/48
ipv6-subnet-prefix = 64

If you see the following line

ipv6-network = fda9:4efe:7e3b:03ea::/64

Please change it to:

ipv6-network = fda9:4efe:7e3b:03ea::/48

Save and close the file. Restart ocserv for the change to take effect.

sudo systemctl restart ocserv

Enable IP Forwarding for IPv6

Then we need to enable IP forwarding for IPv6 in the Linux kernel. Edit sysctl.conf file.

sudo nano /etc/sysctl.conf

Add the following line at the end of this file.

net.ipv6.conf.all.forwarding=1

Save and close the file. Then apply the changes with the below command.

sudo sysctl -p

Set Up IPv6 in Firewall (Debian, Ubuntu)

Next, we need to set up IPv6 masquerading in the UFW firewall, so that the server becomes a virtual router for VPN clients.

sudo nano /etc/ufw/before6.rules

By default, there are some rules for the filter table. Add the following lines at the end of this file. Replace ens3 with your own network interface name. In Nano text editor, you can go to the end of the file by pressing Ctrl+W, then Ctrl+V.

# NAT table rules
*nat
:POSTROUTING ACCEPT [0:0]
-A POSTROUTING -o ens3 -j MASQUERADE

# End each table with the 'COMMIT' line or these rules won't be processed
COMMIT

IPv6 masquerading in the UFW firewall

By default, UFW forbids packet forwarding. We can allow forwarding for our private IPv6 network. Find the ufw6-before-forward chain in this file and add the following 3 lines, which will accept packet forwarding if the source IP or destination IP is in the fda9:4efe:7e3b:03ea::/48 range.

# allow forwarding for VPN
-A ufw6-before-forward -s fda9:4efe:7e3b:03ea::/48 -j ACCEPT
-A ufw6-before-forward -d fda9:4efe:7e3b:03ea::/48 -j ACCEPT

ufw allow packet forwarding for ipv6 network

Save and close the file. We also need to allow IPv6 VPN clients in the firewall’s INPUT chain.

sudo ufw allow in from fda9:4efe:7e3b:03ea::/48

Restart UFW for the change to take effect.

sudo systemctl restart ufw

Now if you list the rules in the POSTROUTING chain of the NAT table by using the following command:

sudo ip6tables -t nat -L POSTROUTING

You can see the Masquerade rule.

enable ipv6 in ocserv openconnect vpn

Disconnect the current VPN connection, add an AAAA record for vpn.example.com and re-establish VPN connection. Then go to https://test-ipv6.com/ to check your IPv6 connectivity.

Set Up IPv6 in Firewall (CentOS)

Enable masquerading for IPv6.

sudo firewall-cmd --permanent --add-rich-rule='rule family="ipv6" source address="fda9:4efe:7e3b:03ea::/48" masquerade'

Allow VPN clients in the INPUT chain.

sudo firewall-cmd --permanent --add-rich-rule='rule family="ipv6" source address="fda9:4efe:7e3b:03ea::/48" accept'

Reload firewalld for the changes to take effect.

sudo systemctl reload firewalld

Configure IPv6 in BIND Resolver

If you run your own BIND DNS resolver on the VPN server, you can add the following line in /etc/ocserv/ocserv.conf file to set the VPN server as the DNS resolver for VPN clients.

dns = fda9:4efe:7e3b::1

Save and close the file. To query DNS names in IPv6, we need to configure BIND to allow IPv6 VPN clients.

Debian/Ubuntu

sudo nano /etc/bind/named.conf.options

Find the allow-recursion parameter and change it to:

allow-recursion { 127.0.0.1; 10.10.10.0/24; fda9:4efe:7e3b:03ea::/48; };

Save and close the file. Restart BIND9.

sudo systemctl restart bind9

CentOS

sudo nano /etc/named.conf

Find the allow-query parameter and change it to:

allow-query { 127.0.0.1; 10.10.10.0/24; fda9:4efe:7e3b:03ea::/48; };

Save and close the file. Restart BIND9.

sudo systemctl restart named

Set Up IPv6 in HAProxy

Edit the HAProxy configuration file.

sudo nano /etc/haproxy/haproxy.cfg

Make the https frontend listen on both IPv4 and IPv6 addresses. Obviously you need to use your own server’s public IPv6 address.

frontend https
   bind 12.34.56.78:443
   bind 2607:f8b0:4006:810::200e:443
   mode tcp
   tcp-request inspect-delay 5s
   tcp-request content accept if { req_ssl_hello_type 1 }

Then find the ocserv backend and add an IPv6 server.

backend ocserv
   mode tcp
   option ssl-hello-chk
   server ocserv 127.0.0.1:443 send-proxy-v2
   server ocserv6 [::1]:443 send-proxy-v2

Save and close the file.

To make ocserv listen on both 127.0.0.1 and ::1, edit the /etc/hosts file.

sudo nano /etc/hosts

Edit the entry for 127.0.0.1 and ::1 like below, so the vpn.example.com hostname can be resolved to both addresses.

127.0.0.1   localhost vpn.example.com

::1         ip6-localhost ip6-loopback vpn.example.com

Save and close the file. Then edit ocserv configuration file.

sudo nano /etc/ocserv/ocserv.conf

Find the following line.

listen-host = 127.0.0.1

Change it to

listen-host  = vpn.example.com

ocserv will find the IPv4 and IPv6 addresses of vpn.example.com in the /etc/hosts file and bind to both 127.0.0.1 and ::1 addresses. Save and close the file. Then restart ocserv and HAProxy

sudo systemctl restart ocserv
sudo systemctl restart haproxy

Now run the following command to check the listening status of ocserv. You will see that it’s listening on both 127.0.0.1 and ::1.

sudo ss -lnpt | grep ocserv

sudo ss -lnpt | grep ocserv ipv6

Testing IPv6 Connectivity

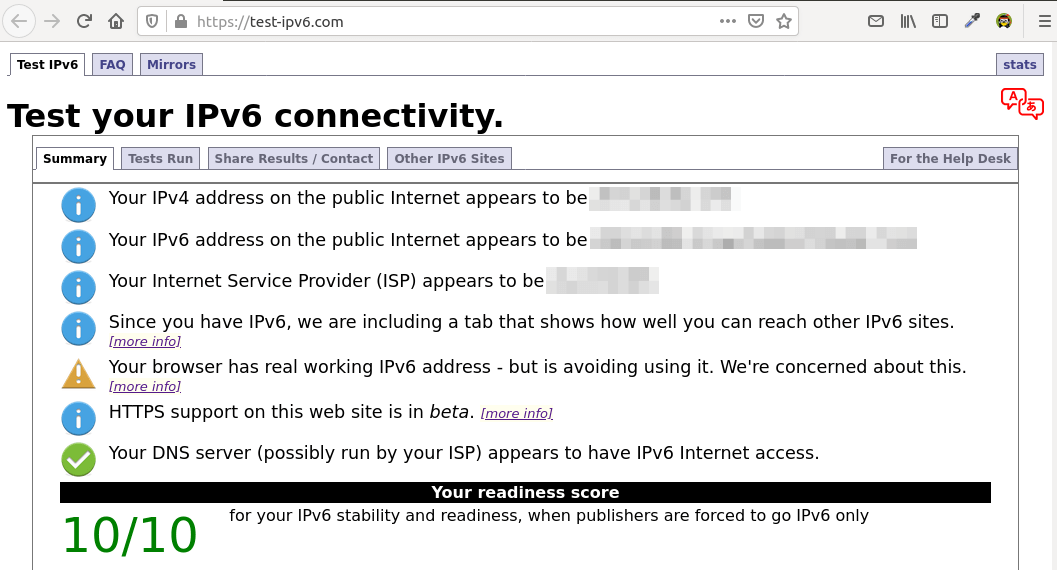

Restart your VPN client and go to https://test-ipv6.com/ to check your IPv6 connectivity. If everything goes well, you should see your VPN server’s IPv4 and IPv6 addresses in the test result. And the warning “VPN is only protecting one protocol” should be gone.

Testing IPv6 Connectivity ocserv VPN

If you don’t see your VPN server’s IPv6 address in the test result, perhaps you need to reboot the VPN clients and re-establish VPN connection.

Note: The VPN client doesn’t have to have a public IPv6 address. It can use IPv6 over the IPv4 VPN tunnel.

Wrapping Up

I hope this tutorial helped you run OpenConnect VPN server and Apache/Nginx on the same box. As always, if you found this post useful, then subscribe to our free newsletter to get more tips and tricks. Take care 🙂

Rate this tutorial
[Total: 3 Average: 5]

16 Responses to “Run OpenConnect VPN Server & Apache/Nginx on the Same Box with HAProxy

  • Stephan
    4 years ago

    What is the usecase of OpenConnect AND Webserver on the same box?
    I expected to read in this post, why I would need that.
    Thank you.

    • Xiao Guoan (Admin)
      4 years ago

      OpenConnect allows you to run your own VPN server in the cloud. Some folks might also want to build a website using Apache or Nginx. Running a VPN server and web sersver on the same box can save some money, because you don’t have to spin up another cloud server.

  • akash rao
    4 years ago

    nice 🙂

  • Dismissing the issue of ‘money’ and ‘saving some money’; the setup that you wrote is about:

    – Two things jumbled into one box [to same money]; or is it

    – A webserver, that is also connecting to the outside world via the built in VPN; and offering anonymity for the websites that are within the same ‘box’ ?

    Thanx

    • Xiao Guoan (Admin)
      4 years ago

      The first one.

      • Thank you Xiao for the reply, and of course for the article. I am looking for instructions or how to have a ‘box’ that contains both a Webserver and a VPN services, where the websites IP Address are of the VPN’s IP Address (or anonymized). I don’t have the technical knowledge to know if this is possible or not (that a VPN separate server must be there to accomplish this).

        • ComfyArmchair
          3 years ago

          Atlas,

          To be clear that I understand, are you trying to run websites from behind a VPN? If that is what you are asking, yes it is possible. In that scenario, only those you grant VPN access to would be able to access you websites. Am I understanding your use case correctly?

  • Xiao Guoan (Admin)
    4 years ago

    If the IPv6 test result says your DNS server can’t access IPv6, that’s probably because you disabled IPv6 in the BIND resolver.

  • This XML file does not appear to have any style information associated with it. The document tree is shown below.

    0.1(1)

    Please enter your username.


    whats that, on browser i see that, how fix this?

    • Xiao Guoan (Admin)
      1 year ago

      This is not an error. You are not supposed to establish OpenConnect VPN connection inside a web browser. Ignore it and use a standard VPN client.

  • aold619
    1 year ago

    Hello Xiao,

    I deployed ocserv latest version as a container on my server and got domain certificate from Letsencrypt. If I only expose the port of ocserv container and connect to ocserv directly, everything works fine.

    However, if I add haproxy as proxy and set `listen-proxy-proto = true` in ocserv. I’ll get the error `worker[]: worker-vpn.c:1544: error parsing CSTP data`, and the client start trying reconnect and server just close the session again and again.

    Could you have a look about my HAProxy config file? Maybe you have some ideas. I searched for a day, but haven’t got any answer yet.

    Thanks.

    “`
    defaluts
    mode tcp
    timeout connect 5s
    timeout client 300s
    timeout server 300s

    frontend tls-in
    bind :443 tfo ssl crt /etc/ssl/certs/priv-fullchain-bundle.pem
    tcp-request inspect-delay 5s
    default_backend ocserv

    backend ocserv
    server ocserv ocserv:443 send-proxy-v2 ssl verify none
    “`

    • aold619
      1 year ago

      Sorry about the format, I’ll try repost the info below.

      Ocserv error:

      ocserv: worker[user]: 172.18.0.2 worker-vpn.c:1544: error parsing CSTP data


      HAProxy configuration:

      defaluts
          mode tcp
          timeout connect 5s
          timeout client 300s
          timeout server 300s

      frontend tls-in
          bind :443 tfo ssl crt /etc/ssl/certs/priv-fullchain-bundle.pem
          tcp-request inspect-delay 5s
          default_backend ocserv

      backend ocserv
          server ocserv ocserv:443 send-proxy-v2 ssl verify none

      • aold619
        1 year ago

        My problem has been solved, the answer is to delete the certificate from haproxy configuration, and no need to set

        ssl verify none

        also, just leave the certificate verification to ocserv

  • WanJie Wang
    1 year ago

    在CentOS7上尝试失败了

  • Hello i have Ubuntu 2004 openvz how can install openconnect vpn can you help me

Leave a Comment

  • Comments with links are moderated by admin before published.
  • Your email address will not be published.
  • Use <pre> ... </pre> HTML tag to quote the output from your terminal/console.
  • Please use the community (https://community.linuxbabe.com) for questions unrelated to this article.
  • I don't have time to answer every question. Making a donation would incentivize me to spend more time answering questions.

The maximum upload file size: 2 MB. You can upload: image. Links to YouTube, Facebook, Twitter and other services inserted in the comment text will be automatically embedded. Drop file here
